STUDY BOAT PLANS ...
Delivered by DOWNLOAD to your computer.
The study plans have lists of
materials & equipment etc & these will be useful in
costing out the complete boat.
Each STUDY PLAN contains ALL the construction
drawings for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!
of materials - Technical information - Numerous
construction drawings are all included. You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the study plan package.
PLUS you receive a FREE
BUILD YOUR OWN BOAT
STEP BY STEP ASSEMBLY PHOTOS INCLUDED WITH THE
& COMPLETE PLANS
The Voyager 388 STEEL OR ALUMINUM PLANS & CUTTING FILES assembly photos that
appear in this series were supplied by
Myron & Anita Fox who are assembling their Bruce Roberts supplied STEEL OR ALUMINUM PLANS & CUTTING FILES in Oregon.
Bottom plates as laid into shaped jib cradles.
Jig, bottom plates, bulkhead & frames can be easily &
quickly installed using reference lines and pre-cut slots etc.
Keel can be pre-assembled & installed now or later.
Note how fair line of stringers fit easily into pre-cut slots in frames.
Forward topside panel can have ports pre-cut or marked as desired.
First steps in assembling transom shown here.

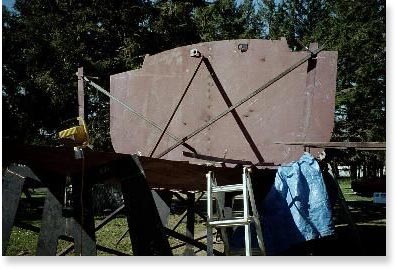

Transom installed in place - viewed from inside hull.
