  TY 620 construction photos page 6
 GO TO PAGES 1, 2, 3, 4, 5, 6, 7, 8 , 9


Lee Simpson assembled the superstructure as a seperate item - many builders do this when
there are height restrictions or simply for convenience - All the STEEL OR ALUMINUM PLANS & CUTTING FILES allow for this option.

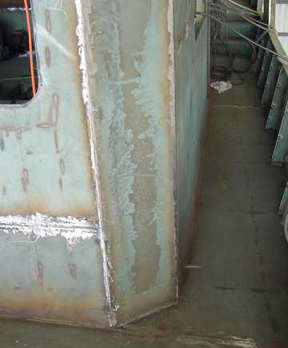

Left: Aft end of salon has bevel for extra deck room.
Above: Keith Marine show how they have assembled the mast and flybridge area.

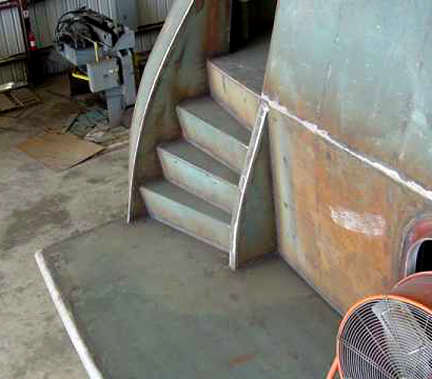

Right: Steps for swim platform to aft deck as assembled by Keith Marine. KEITH-4.jpg (21951 bytes)

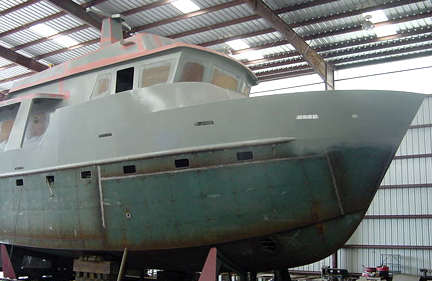

KEITH-5.jpg (21125 bytes) Undercoat being installed by Keith Marine on their Trawler Yacht 620

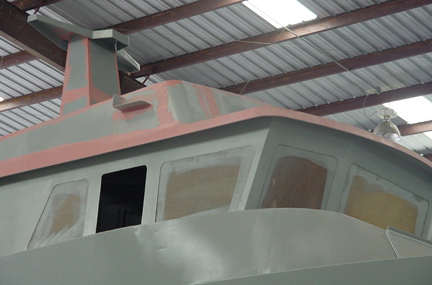

Undercoat being installed by Keith Marine on their Trawler Yacht 620 KEITH-6.jpg (14972 bytes)

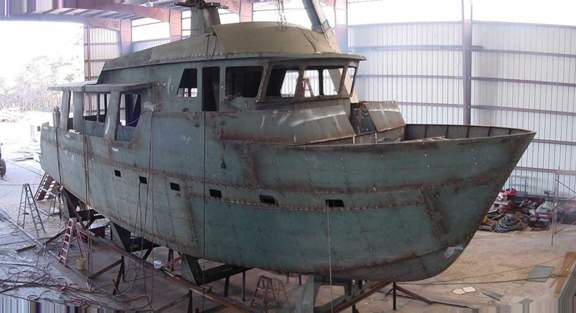

TY620-P7.jpg (27110 bytes) TY620 assembled by Keith Marine shown before starting the fairing and painting process gets under way.
