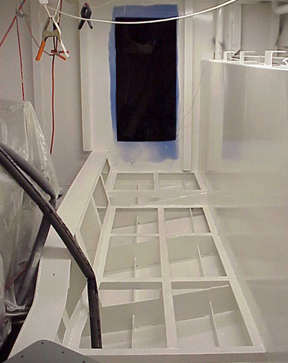

Interior framing looking forward

Framing for some of the cabinet-work

Left: Engine bed and engine-room sole framing.

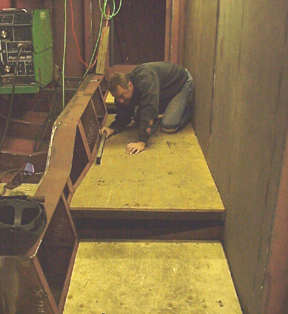

Above: Engine-room sole being installed.

The webs & plating for the rudder for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up the STEEL OR ALUMINUM PLANS & CUTTING FILES.

Rudder in place - Note strong heel and stern tube set to allow maximum flow of water to propeller.
