BUILD FOR LESS WITH BRUCE ROBERTS BOAT PLANS

Check out what customers have to say about our designs & our service.
 PLUS check out the links to the beautiful boats they have built with our help !

CUSTOMERS COMMENTS


Illustrated Custom Boatbuilding. We recommend that you read this hardcover book - We will even give you a free copy - all you have to do is to pay the postage.

HOME PAGE

28' - 32' - 36' Coaster-Coastworker.

BOAT STUDY PLANS ... Delivered by DOWNLOAD to your computer plus we will send you a USB Memory stick with many extra drawings and photos. The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat. Each STUDY PLAN contains ALL the construction drawings for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE (value 79.95) e-book BUILD YOUR OWN BOAT .. STUDY PLANS CW 25 + CW28 ALL VERSIONS ..  49.85 - €63 - $85


SPECIAL OFFER: COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS ... Delivered by DOWNLOAD to your computer plus we will send you a USB Memory stick with many extra drawings and photos.  The plans have all the information you need to build your own boat. Each plan contains all the construction drawings for STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY construction, plus bonus drawings covering electrical, plumbing and engineering. Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment, all technical information, numerous construction drawings and written building instructions are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE (value 79.95) e-book BUILD YOUR OWN POWERBOAT. Only available at this price if you order off this page.


 PLANS & PATTERNS COASTWORKER 25 (Steel or Aluminum or Fiberglass)    245 - €335 - $365

 PLANS & PATTERNS COASTWORKER  28 (Steel or Aluminum or Fiberglass)     295 - €398 - $442
CUTTING FILES & PLANS COASTWORKER 28 8ft - 3in Beam - (Aluminum)   345 - €470 - $515

SEE BOTTOM OF THIS PAGE FOR COASTER CW PRICES.

Coastworker 25 / 28
Boat plans and patterns available for building in either Steel, Aluminum Fiberglass or Wood Epoxy.

Also check out the new 28ft trailerable planing hull version - See below.

This design makes for a good first time boatbuilding project and makes an ideal all purpose Workboat, Dive boat or Fishing boat. With it's full range of hull shapes it can be turned to almost any task.  Over 350 Coastworker 25 / 28 have been completed from our boat plans and are now in service in various parts of the world.

You may choose between either displacement, semi-displacement or planing hull forms. Power options range from a 50 hp engine in the displacement version to 250 hp in the planing version. The pilot house may be extended aft if you wish to build her as a family cruiser and require more accommodation. Power units offer a choice of  Single or Twin inboard or Stern Drives, or even single or twin Out-boad power has been fitted to this versatile boat.

The boat plans and frame patterns are easy to follow and you can build this boat in your chosen material ... see options above. With its full displacement, semi-displacement or planing hull this boat can be built as a family cruiser or as a rugged work boat.

The chine hull has provided an excellent overall hull shape and plating has been calculated to provide easy construction with minimum wastage.  This design was prepared for operators in the North Sea and therefore the boat had to a rugged and safe sea boat. The full displacement hull makes for economical operation and has been designed to operate around the 7 to 8 kt cruising speed range with a 60 hp engine.

Amateurs with welding experience should have no problems building this vessel using the full size frame patterns which come with the boat plans, and the straight forward, step by step instructions.  If you choose fiberglass construction then virtually anyone with the very minimum of hands on DIY experience can ( and already have) built this boat.

L.O.A. 7.80 m  or  8.53 m 25' - 6" or  28' -0"
L.W.L. 7.16 m  or  7.93 m 23'-  6" or  26'- 0"
BEAM   2.43  or  2.85 m 8' - 3"  or  9' - 4"
DRAFT 1.20 m 3' -  9"
   Options: ... STEEL or ALUMINUM or FIBERGLASS or WOOD EPOXY construction

     25 FT  COASTWORKER VERSIONS

1.   Boat plans and frame patterns for 25 ft long x 9'-4" beam Semi displacement hull ( 10 knots ) FIBERGLASS.

2.   Boat plans and frame patterns for 25 ft long x 9'-4" beam Planing hull ( Up to 30 knots but best 18 – 25 knots ) FIBERGLASS.

3.   Boat plans and frame patterns for 25 ft long x 9'-4" beam Semi displacement hull ( 10 knots ) STEEL OR ALUMINUM

4.   Boat plans and frame patterns for 25 ft long x 9'-4" beam Planing hull ( Up to 30 knots but best 18 – 25 knots ) STEEL OR ALUMINUM

5.   Boat plans and frame patterns for 25 ft long x 8'- 3" beam ( TRAILERABLE ) Semi displacement hull ( 10 knots ) FIBERGLASS.

6.   Boat plans and frame patterns for 25 ft long x 8’- 3”  beam ( TRAILERABLE )  Planing hull ( Up to 30 knots but best 18 – 25 knots ) FIBERGLASS.

7.   Boat plans and frame patterns for 25 ft long x 8'- 3" beam ( TRAILERABLE ) Semi displacement hull ( 10 knots ) FIBERGLASS.

8.   Boat plans and frame patterns for 25 ft long x 8’- 3”  beam ( TRAILERABLE )  Planing hull ( Up to 30 knots but best 18 – 25 knots ) FIBERGLASS.


     28 FT COASTWORKER VERSIONS

1.   Boat plans and frame patterns for 28 ft long x 9'-4" beam Semi displacement hull ( 10 knots ) FIBERGLASS.

2.   Boat plans and frame patterns for 28 ft long x 9'-4" beam planing hull ( Up to 30 knots but best 18 – 25 knots ) FIBERGLASS.

3.   Boat plans and frame patterns for 28 ft long x 9'-4" beam Semi displacement hull ( 10 knots ) STEEL OR ALUMINUM

4.   Boat plans and frame patterns for 28 ft long x 9'-4" beam planing hull ( Up to 30 knots but best 18 – 25 knots ) STEELOR ALUMINUM

5.   Boat plans and frame patterns for 28 ft long x 8'- 3" beam ( TRAILERABLE ) Semi displacement hull ( 10 knots ) FIBERGLASS.

6.   Boat plans and frame patterns for 28 ft long x 8’- 3”  beam ( TRAILERABLE )  planing hull ( Up to 30 knots but best 18 – 25 knots ) FIBERGLASS.

7.   Boat plans and frame patterns for 28 ft long x 8'- 3" beam ( TRAILERABLE ) planing hull ( Up to 30 knots but best 18 – 25 knots ) FIBERGLASS.

8.   Boat plans and frame patterns for 28 ft long x 8’- 3”  beam ( TRAILERABLE )  planing hull ( Up to 30 knots but best 18 – 25 knots ) ALUMINUM CUTTING FILES.

28' - 32' - 36' - SEE COASTER - COASTWORKER SERIES FURTHER DOWN THIS PAGE.

9.  Boat plans and frame patterns for 28 ft long x 10’- 0”  beam Planing hull ( Up to 30 knots but best 18 – 25 knots ) WOOD EPOXY

10.  Boat plans and frame patterns for 32 ft long x 10’- 0” beam Planing hull ( Up to 30 knots but best 18 – 25 knots ) WOOD EPOXY

11.  Boat plans and frame patterns for 36 ft long x 10’- 0” beam Planing hull ( Up to 30 knots but best 18 – 25 knots ) WOOD EPOXY OR ALUMINUM


SEE NEW CENTER CONSOLE VERSION AT BOTTOM OF THIS PAGE
Coastworker 25 / 28
This boat can be built in a variety of length and beams - see the options above
Coastworker 25 / 28
The profile shown here shows the work-boat / fishing-boat version with the short wheelhouse shown in one version of the boat plans.



Coastworker 25 / 28
The plan view shown shows the work-boat / fishing-boat version with the long cockpit shown in one version of the boat plans.

Coastworker 25 / 28

From a COASTWORKER 25 BUILDER:

HI Bruce, I ordered a set of boat plans for my best friend for Christmas, here it is 1month later & we are going to start putting the bottom on her today.

The planing hull design is excellent. She's a weekend project because both of us have full time jobs. We can't wait to christen her "Keel Estate". Some pictures & updates are soon to follow....Regards John Dunn

HI Bruce, I recently received my boat plans and patterns for the coastworker 25', 8' planning hull Steel / Aluminium. I must say I am more than happy.

One thing I am curious about getting though is the patterns on a cad file, I have just noticed this information on the your web site and was hoping you could send me some information on the cost and the style of format e.g. dwg,dxf etc.. thanks once again      Brett Muller

ANSWER: We can supply AutoCAD files for any parts of the boat plans and patterns ... they are in DWG format.

Coastworker 25 / 28

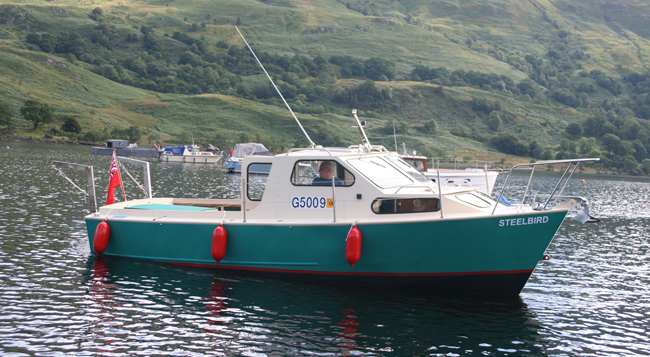

This Coastworker 25 was built by David Wren in England UK and the owner is very happy with the results so far.

Coastworker 25 / 28

This is the long cabin version of the  Coastworker 25 / 28



Coastworker 25 / 28

This is just one of the possible accommodation layouts for the long cabin version of the  Coastworker 25 / 28



COASTWORKER 28 WORK BOAT WOOD EPOXY

COASTWORKER 32 WORK BOAT - WOOD EPOXY

COASTWORKER 36 WORK BOAT - WOOD EPOXY -  ALUMINUM



COASTER - COASTWORKER SERIES.

COASTER - COASTWORKER
28
FISHERMAN / WORK BOAT  WOOD EPOXY
LOA 28' - 10"/  8.82 m ....  Beam 10 ft / 3.05 m

PLANS & PATTERNS COASTER - COASTWORKER 28 W/E

   295 - €270 - $498


COASTER - COASTWORKER 32

FISHERMAN / WORK BOAT WOOD EPOXY
LOA 32' - 8"  /  9.96 m ....  Beam 11 ft /  3.35 m

PLANS & PATTERNS COASTER - COASTWORKER 32 W/E

      295 - €270 - $498


COASTER - COASTWORKER 36

FISHERMAN / WORK BOAT  WOOD EPOXY also in ALUMINUM
LOA 36' - 10" / 11.25 m ....  Beam 12 ft / 3.65 m

PLANS & PATTERNS
COASTER - COASTWORKER 36 W/E


   395 - €495 - $675


PLANS & PATTERNS COASTER COASTWORKER 36 ALUMINUM

    395 - €495 - $675

Coastworker 25 / 28

Stern drive version built by David Wren



Coastworker 25 / 28

New Trailerable Planing hull version with extended cabin. Hi Bruce, Have finally finished and sea trialled our Coastworker 28. It performs and handles extremely well.

Coastworker 25 / 28

Trailerable Planing hull version with extended cabin.

Coastworker 25 / 28

Coastworker 28 on its trailer - the trailer boat plans come with the boat plans and many builders do also build there own from our boat plans.

Coastworker 25 / 28

Coastworker 28 - here we see part of the very spacious cockpit - note the storage boxes in the stern area.

Coastworker 25 / 28

Coastworker 28 - here we see the engine box which may double as a table in some accommodation layouts.

Coastworker 25 / 28

Coastworker 28 - Command area fitted with comfortable helsman's seat.



See study boat plans on DOWNLOAD or on USB - for many more photos of the Coastworker 28 and other versions.

COASTWORKER 25
ALUMINUM, FIBERGLASS or STEEL

COASTWORKER 28
ALUMINUM, FIBERGLASS or STEEL

Boat plans and patterns for this Custom center console version is available for building in Aluminum, Fiberglass or Steel Choose either Coastworker 25 or Coastworker 28


BEAM - Available in 8FT or 9'-3" versions.
