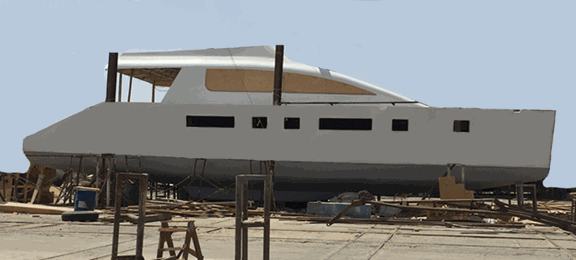

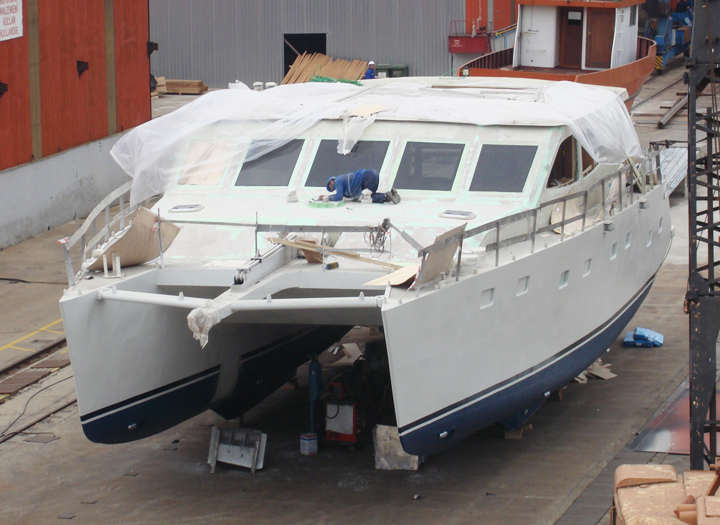

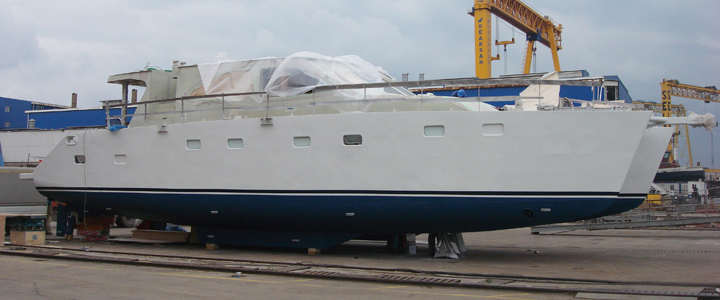

CATAMARAN MS 65 - SAIL & POWER VERSIONS AVAILABLE. This CATAMARAN was built in Turkey.  STEP by STEP PHOTOS included with STUDY PLANS. This boat is now sailing and the owners are delighted with the boats performance and handling qualities.

CATAMARAN PS 360  SEE MORE
CATAMARAN PS 395 / 400  SEE MORE

Cat PS 675   SEE MORE

Cat PS 675  - Optional Covered flybridge version.

EURO CATAMARAN 2000  'Indio Pacific' built in Brisbane by Bob Rochester.

This new CATAMARAN 465 can be built from the CATAMARAN 460 boat plans.



CAT 35-36 - Plans and FULL SIZE PATTERNS
 for FIBERGLASS construction.

NEW ! SUPER STUDY BOAT PLANS ... Delivered by DOWNLOAD to your computer Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.  The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat. Each STUDY PLAN contains ALL the construction drawings for STEEL or FIBERGLASS or ALUMINUM - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE e-book BUILD YOUR OWN (Sail or Power) BOAT

STEP BY STEP ASSEMBLY PHOTOS INCLUDED WITH THE STUDY PLANS & COMPLETE PLANS

STUDY PLAN EURO CAT 2000 + CAT MS 65  59.95 - us$99.95 - €75.85

SPECIAL INTRODUCTORY OFFER: BOAT PLANS & FULL SIZE FRAME PATTERNS OR PLANS & CUTTING FILES ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.

The plans have all the information you need to build your own boat.. Each plan contains all the construction drawings & FULL SIZE PATTERNS for STEEL or FIBERGLASS or CUTTING FILES for ALUMINUM construction, plus bonus drawings covering electrical, plumbing and engineering, everything you need to build your boat. Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment are all included plus all technical information, numerous construction drawings and written building instructions are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE (value 79.95) e-book BUILD YOUR OWN SAILBOAT .. Only available at this price if you order off this page.


PLANS & FULL SIZE FRAME PATTERNS  STEEL CAT MS 65.   1,950- $3,025 - €2,635


PLANS & FULL SIZE FRAME PATTERNS  FIBERGLASS CAT MS 65.   1,950- $3,025 - €2,635

 PLANS & ALUMINUM CUTTING FILES CAT MS 65.   1,950- $3,025 - €2,635

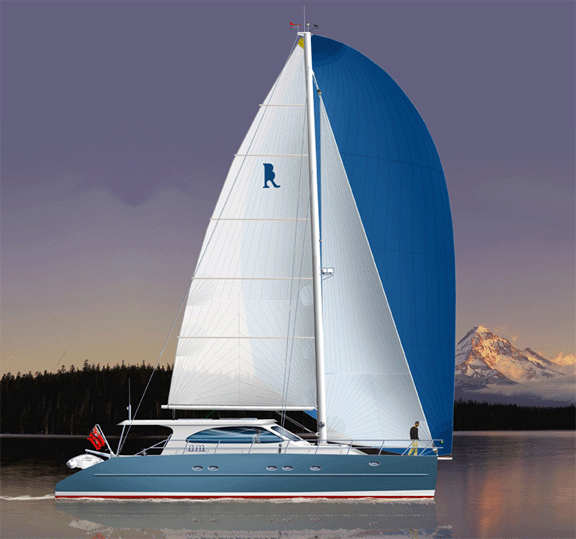

CATAMARAN 65 MS ALUMINUM or FIBERGLASS

ALUMINUM KIT or CUTTING FILES & BOAT PLANS
Boat plans are NOW also available for STEEL or FIBERGLASSS construction.

The CATAMARAN 65 MS was designed for personal use or charter work or as a people carrier and the accommodation was laid out with that in mind. There will be two basic layouts - personal arrangement as shown here plus an arrangement more suitable for charter use. The building technique is well proven as Bruce Roberts has used similar techniques in building radius chine mono-hulled sail boats since the early 1980'S. You can order a KIT or CUTTING FILES EMAIL BRUCE FOR DETAILS.

LOD 65'-0"

19.81 M

LWL 62'-8"

19.10 M

BEAM

27'-0"

8.23 M

SAIL AREA 1,500 SQ FT 139.36 SQ M


CATAMARAN 65 MS
ALUMINUM or FIBERGLASS construction

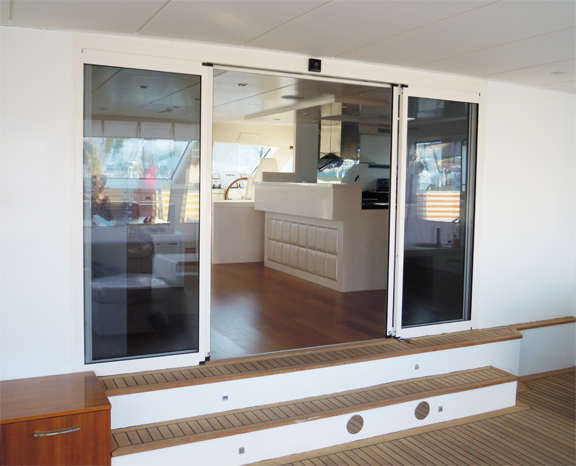

This is our suggested lay-out for the main deck. As you can imagine, there are a variety of ways you could arrange this accommodation to suit your personal requirements.

CATAMARAN 65 MS
ALUMINUM or FIBERGLASS construction

 Here are our suggested lay-outs for the sleeping accommodation - top shows the 'Owner' arrangement and the lower illustration is the suggested 'Charter' arrangement.

CAT MS 65 CUSTOM SAILING FLY-BRIDGE


CAT MS 65 CUSTOM PILOT HOUSE VERSION.

CATAMARAN 65 MS
ALUMINUM or FIBERGLASS construction

There are several custom options suitable for this design ... here we see a sailing version with fly-bridge and a power version with custom pilot house.

CATAMARAN 35 -36
Sail & power versions.



New Euro Cats 13m,15m & 17m - Sail plans

New Euro Cats 13m,15m & 17m - Accomodation plans




New Euro Cat 24m - Sail plan





STUDY PLAN PACKAGE:
COVERING THE NEW CATS 13m, 15m & 17m INCLUDING SAMPLES OF ALL CONSTRUCTION METHODS -
ORDER:  99.95 - us$142 - €128


Euro Cat 1300
ALUMINUM or FIBERGLASS

LOA..........44' - 6" / 13.56 m
LWL.........42'-5" / 12.95 m
BEAM .......22'-11" / 7.00 m
H-BEAM ...4'-9" / 1.45
DRAFT......4'-6" / 1.27 m
DISPLACEMENT 29,950 lbs / 13,585 kg

COMPLETE PLANS & PATTERNS  ALUMINUM or FIBERGLASS.
995 - us$1,420 - €1,285
EMAIL BRUCE
For a pre - release SPECIAL PRICE OFFER on these ALUMINUM or Fiberglass plans.


Euro Cat 1500
ALUMINUM or FIBERGLASS

LOA..........52'-1" / 16.89 m
LWL.........49'-8" / 15.15 m
BEAM .......25'-6" / 7.78 m
H-BEAM ...5'-3" / 1.60
DRAFT......4'-6" / 1.27 m
DISPLACEMENT 39,464 lbs / 17,900 kg

COMPLETE PLANS & PATTERNS  ALUMINUM or FIBERGLASS.
1,495 - us$2,125 - €1,925
EMAIL BRUCE
For a pre - release SPECIAL PRICE OFFER on these ALUMINUM or Fiberglass plans.


Euro Cat 1700
ALUMINUM or FIBERGLASS

LOA..........58' - 7" / 17.87 m
LWL.........55'-9" / 17.00 m
BEAM .......27'-11" / 8.51 m
H-BEAM ...5'-9" / 1.75
DRAFT......5'-0" / 1.53 m
DISPLACEMENT 55,000 lbs / 24,947 kg

COMPLETE PLANS & PATTERNS  ALUMINUM or FIBERGLASS.
2,995 - us$4,250 - €3,885
EMAIL BRUCE
For a pre - release SPECIAL PRICE OFFER on these ALUMINUM or Fiberglass plans.


Euro Cat 2400
ALUMINUM or FIBERGLASS

LOA..........78' - 08" / 24.00 m
LWL.........78'-06" / 24.00 m
BEAM .......41'-06" / 12.65 m
H-BEAM ...11'-09" / 3.58
DRAFT......6'-06" / 2.00 m
COMPLETE PLANS ALUMINUM or FIBERGLASS.
C
UTTING FILES AVAILABLE FOR THIS CAT

14,950- us$21,250 - €19,150
For a pre - release SPECIAL PRICE OFFER on these ALUMINUM or Fiberglass plans. For more info, EMAIL BRUCE


These new Catamaran designs are based on our wide experience in designing our existing range of cats including the extensively cruised and well proven Euro Cat 2000, Cat PS 35/36, Cat PS 395/400 ; etc.  These new  roomy and comfortable serious off-shore designs will take you anywhere you want to go!


STUDY PLAN PACKAGE:
COVERING THE NEW CATS 13m, 15m & 17m INCLUDING SAMPLES OF ALL CONSTRUCTION METHODS -

ORDER:  99.95 - us$142 - €128
