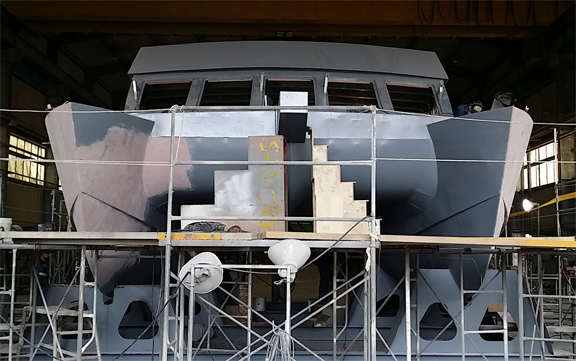

Aluminum Cat 400 built by GHI YACHTS. South Korea from BR cutting files and plans.

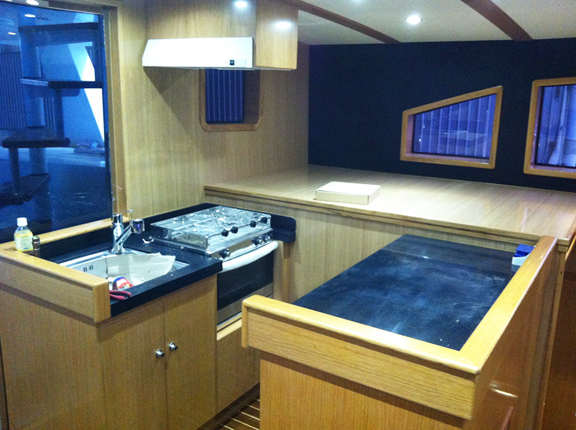

Galley area in Cat 400 built by GHI Industries in South Korea

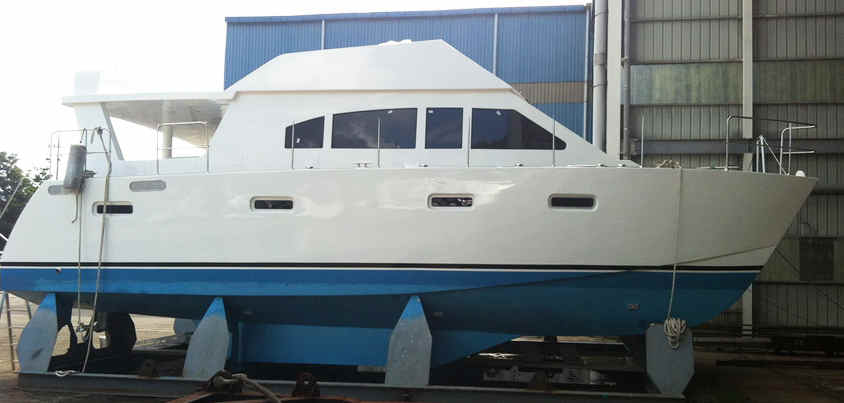

Cat 400 built by GHI Industries in South Korea


SUPER STUDY BOAT PLANS ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order. The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat. Each STUDY PLAN contains ALL the construction drawings for each material - ALUMINUM & FIBERGLASS  as applicable to the particular boat plan - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included. You can view & print the drawings in full or in sections. STEP BY STEP - BOAT BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE (value 79.95) e-book BUILD YOUR OWN (Sail or Power) BOAT ..

STUDY PLANS CAT 36/37 + 39-400 ALL VERSIONS. 59.95 - us$94.50 - €84.50

STEP BY STEP ASSEMBLY PHOTOS INCLUDED WITH THE STUDY PLANS & COMPLETE PLANS


SPECIAL INTRODUCTORY OFFER: COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.

The plans have all the information you need to build your own boat.. Each plan contains all the construction drawings for FIBERGLASS OR ALUMINUM (Cutting files) construction, plus bonus drawings covering electrical, plumbing and engineering, everything you need to build your boat. Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment are all included plus all technical information, numerous construction drawings and written building instructions are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE (value 79.95) e-book BUILD YOUR OWN SAILBOAT .. Only available at this price if you order off this page


                PLANS & PATTERNS FIBERGLASS CAT 395  795 - $1,125 - €1,049

   PLANS & CUTTING FILES  ALUMINUM CAT 400   995 - $1,395 - €1,295
SEE:  ALL CATAMARAN BOAT PLANS & KITS

CAT 395 or CAT 400 - ALUMINUM or FIBERGLASS. These CATAMARANS were designed to be built using the FIBERGLASS panel construction or ALUMINUM using our CUTTING FILES and boatbuilding techniques. These methods are very simple to use and perfect for the inexperienced builder. All of the developing is done in the computer and patterns are supplied for the female frame formers. Special pre-scaled drawings are supplied for each hull panel making it simple for the builder to build all of the hull and superstructure.

This is a POWER-SAILER CATAMARAN .. the bias is about 60% power and 40% sail ... the boat can be built as a power only vessel or with the added rig as shown.  As for pure sailing CATS; although we have considerable multi hull experience going back to 1961. If you want a good Power-Sailer-CAT then the CAT 395 / 400 could be your choice. See also the CAT 46 which is a larger version of the CAT39

L.O.A. 12.10 m 39' 10"
L.W.L. 11.12 m 36'   6"
DRAFT   1.07 m   3'   6"
BEAM   7.16 m 23'   6"
POWER 100 TO 500 hp

BOTH POWER & SAIL VERSIONS INCLUDED.

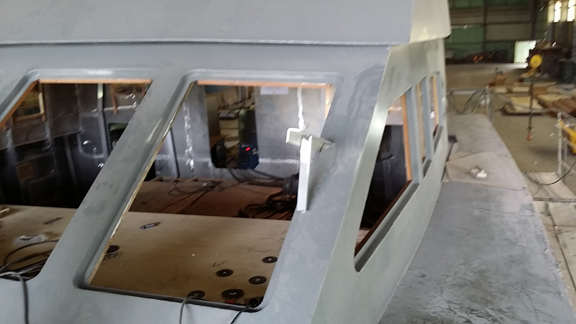

Cat 400 being built in South Korea in aluminum
 by GHI
YACHTS  our Cutting files and plans.

Additional photos are included with the Cat 400
STUDY PLAN package.

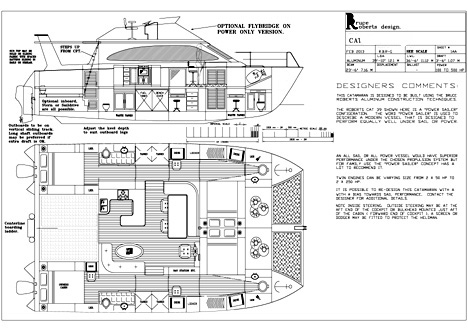

CATAMARAN 395 / Cat 400
FIBERGLASS OR ALUMINUM POWER SAILER

This boat is a true power CATAMARAN & by adding the sail plan we have created a power sailer which will suit those who want a boat that will perform well under both sail and power.  Of course you can build this boat as a pure Power CAT simply omitting the rig.



Aluminum Cat 400 built by GHI Yachts

HOBIN KIM  Purchasing Manager

GHI YACHTS CO.,LTD

Address) 35, Daebulsandan 8-ro 1-gil, Samho-eup, Yeongam-gun, Jeollanam-do, South Korea

Phone) +82-61-464-0900

Fax) +82-61-464-0790

C.P.) +82-10-9041-6348

Web) http://www.ghiyachts.com

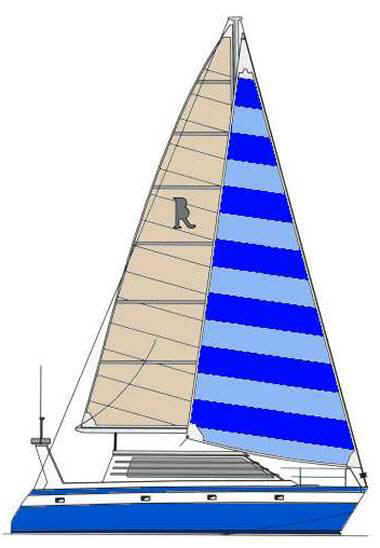

CATAMARAN 395 / Cat 400
FIBERGLASS OR ALUMINUM POWER SAILER

Lots of deck area make this an ideal boat for taking out parties who want to enjoy the sunshine.

The accommodation plan may be varied to suit your requirements - this is an easy boat to build and the STUDY boat plans on DOWNLOAD or on USB
- Or the Complete boat plans and frame patterns make the construction easy to understand and execute.

CATAMARAN 395 / Cat 400
Sport Fisher.

Several of our power cat designs are suitable for use as Sport Fisherman.  The Cat 35 (Fiberglass), Cat 39 (fiberglass or aluminum) Cat 46 (Fiberglass) are all suitable for this use.

Email Bruce for additional information.

CATAMARAN 395 / Cat 400
FIBERGLASS OR ALUMINUM POWER SAILER

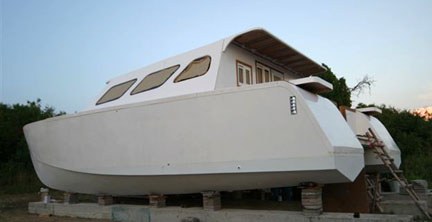

Still some fitting out to do ! CATAMARAN 395

CATAMARAN 395 / Cat 400
FIBERGLASS OR ALUMINUM POWER SAILER

Latest photos of CATAMARAN 395
CATAMARAN 395 / Cat 400
FIBERGLASS OR ALUMINUM POWER SAILER
This shows one of the alternate layouts for the Cat 395/ 400 with Head and shower area in the hulls.
CATAMARAN 395 / Cat 400
FIBERGLASS POWER SAILER

This shows one of the alternate layouts for the Cat 395/ 400 with GALLEY area in the hulls.


CATAMARAN 36
FIBERGLASS POWER SAILER

CATAMARAN 36
FIBERGLASS TRAWLER CATAMARAN

STUDY PLAN PACKAGES ON DOWNLOAD or on USB
- GIVE ACCESS TO MANY step by step BOAT  CONSTRUCTION PHOTOS + PHOTOS OF COMPLETED BOATS ETC.

FIBERGLASS METHODS SHOWN ABOVE - TO SEE ALL ALUMINUM & FIBERGLASS METHODS - ORDER THE STUDY boat plans FOR INFORMATION AS TO  HOW THIS BOAT CAN BE BUILT BY YOU !

CATAMARAN 395
FIBERGLASS POWER SAILER

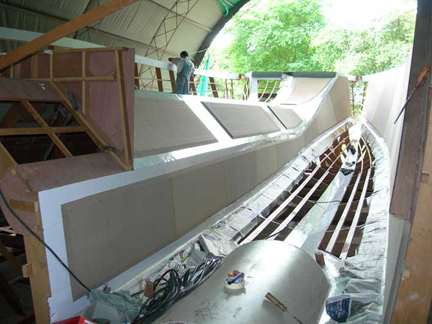

SETTING UP FOR PANEL CONSTRUCTION:
See the way that frames are erected to receive the pre-laminated panels. These drawings are from our Power CAT boat plans. The boat plans have considerable detail on setting up the building frames etc.

CUSTOM CATAMARAN 65 MS
MOTOR SAILER CATAMARAN

SEE MORE DETAILS



CATAMARAN 35  -  CATAMARAN 46 / 470  CATAMARAN MS 65
EURO CATAMARAN 2000   -   CATAMARAN PS 590 / 675



EURO CATAMARAN 2000

'Indio Pacific' built in Brisbane by Bob Rochester.



New Euro Cats 13m,15m & 17m - Sail plans

New Euro Cats 13m,15m & 17m - Accomodation plans




New Euro Cat 24m - Sail plan





STUDY PLAN PACKAGE:
COVERING THE NEW CATS 13m, 15m & 17m INCLUDING SAMPLES OF ALL CONSTRUCTION METHODS -
ORDER:  99.95 - us$142 - €128


Euro Cat 1300
ALUMINUM or FIBERGLASS

LOA..........44' - 6" / 13.56 m
LWL.........42'-5" / 12.95 m
BEAM .......22'-11" / 7.00 m
H-BEAM ...4'-9" / 1.45
DRAFT......4'-6" / 1.27 m
DISPLACEMENT 29,950 lbs / 13,585 kg

COMPLETE PLANS & PATTERNS  ALUMINUM or FIBERGLASS.
995 - us$1,420 - €1,285
EMAIL BRUCE
For a pre - release SPECIAL PRICE OFFER on these ALUMINUM or Fiberglass plans.


Euro Cat 1500
ALUMINUM or FIBERGLASS

LOA..........52'-1" / 16.89 m
LWL.........49'-8" / 15.15 m
BEAM .......25'-6" / 7.78 m
H-BEAM ...5'-3" / 1.60
DRAFT......4'-6" / 1.27 m
DISPLACEMENT 39,464 lbs / 17,900 kg

COMPLETE PLANS & PATTERNS  ALUMINUM or FIBERGLASS.
1,495 - us$2,125 - €1,925
EMAIL BRUCE
For a pre - release SPECIAL PRICE OFFER on these ALUMINUM or Fiberglass plans.


Euro Cat 1700
ALUMINUM or FIBERGLASS

LOA..........58' - 7" / 17.87 m
LWL.........55'-9" / 17.00 m
BEAM .......27'-11" / 8.51 m
H-BEAM ...5'-9" / 1.75
DRAFT......5'-0" / 1.53 m
DISPLACEMENT 55,000 lbs / 24,947 kg

COMPLETE PLANS & PATTERNS  ALUMINUM or FIBERGLASS.
2,995 - us$4,250 - €3,885
EMAIL BRUCE
For a pre - release SPECIAL PRICE OFFER on these ALUMINUM or Fiberglass plans.


Euro Cat 2400
ALUMINUM or FIBERGLASS

LOA..........78' - 08" / 24.00 m
LWL.........78'-06" / 24.00 m
BEAM .......41'-06" / 12.65 m
H-BEAM ...11'-09" / 3.58
DRAFT......6'-06" / 2.00 m
COMPLETE PLANS ALUMINUM or FIBERGLASS.
C
UTTING FILES AVAILABLE FOR THIS CAT

14,950- us$21,250 - €19,150
For a pre - release SPECIAL PRICE OFFER on these ALUMINUM or Fiberglass plans. For more info, EMAIL BRUCE


These new Catamaran designs are based on our wide experience in designing our existing range of cats including the extensively cruised and well proven Euro Cat 2000, Cat PS 35/36, Cat PS 395/400 ; etc.  These new  roomy and comfortable serious off-shore designs will take you anywhere you want to go!


STUDY PLAN PACKAGE:
COVERING THE NEW CATS 13m, 15m & 17m INCLUDING SAMPLES OF ALL CONSTRUCTION METHODS -

ORDER:  99.95 - us$142 - €128
