Euro Cat 1300
ALUMINUM CONSTRUCTION

LOA..........44' - 6" / 13.56 m
LWL.........42'-5" / 12.95 m
BEAM .......22'-11" / 7.00 m
H-BEAM ...4'-9" / 1.45
DRAFT......4'-6" / 1.27 m
DISPLACEMENT 29,950 lbs / 13,585 kg

PLANS & PATTERNS  ALUMINUM CONSTRUCTION.

SEE MORE


Euro Cat 1500
ALUMINUM CONSTRUCTION

LOA..........52'-1" / 16.89 m
LWL.........49'-8" / 15.15 m
BEAM .......25'-6" / 7.78 m
H-BEAM ...5'-3" / E DETA1.60
DRAFT......4'-6" / 1.27 m
DISPLACEMENT 39,464 lbs / 17,900 kg

PLANS & PATTERNS ALUMINUM CONSTRUCTION.


SEE MORE DETAILS

New Euro Cats 13m,15m - Sail plans

SIMILAR LAYOUTS AS SHOWN BELOW ARE AVAILABLE
 FOR CAT 1300, 1500 & 1700

SEE MORE

Euro Cat 1900



LOA

62' - 04"

19.00 m

LWL.

62' - 04"

19.00 m

BEAM

29'-00"

8.84 m

H-BEAM

8'-03"

2.51 m

DRAFT.

5'-03"

1.06 m

Euro Cat 2400



LOA

78' - 08"

24.00 m

LWL.

78'-06"

24.00 m

BEAM

36'-00"

10.97m

H-BEAM

10'-06"

3.20 m

DRAFT.

6'-06"

2.00 m

SEE MORE DETAILS

STUDY PLAN PACKAGE:
NEW CATS 19m, 24m INCLUDING SAMPLES OF
 ALUMINUM & FIBERGLASS CONSTRUCTION METHODS

EMAIL BRUCE FOR A SPECIAL PRICE OFFER

ALUMINUM STEEL OR ALUMINUM PLANS & CUTTING FILES AVAILABLE



Euro Cat 1900 & 2400

ALUMINUM or FIBERGLASS



CUTTING FILES FOR EURO CAT 19 m


ALUMINUM STEEL OR ALUMINUM PLANS & CUTTING FILES AVAILABLE FOR THE EURO CAT 19 m

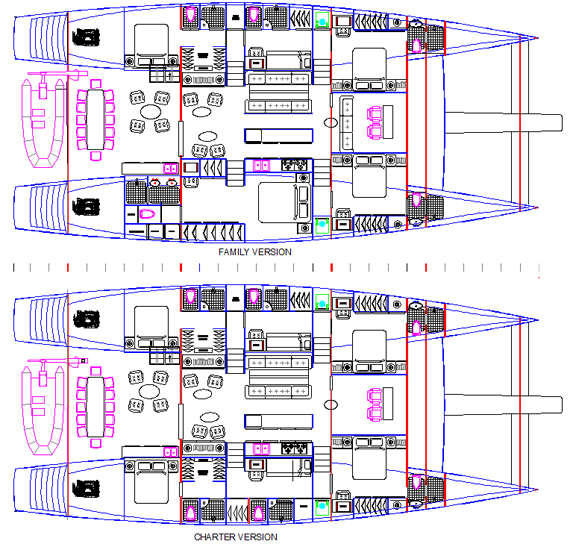

SIMILAR LAYOUTS FOR BOTH CAT 1900 & EURO CAT 2400

SEE MORE DETAILS

EURO CATAMARAN 2000
65 ft / 20.0 m ... Euro Cat 2000

Fast cruising ALUMINUM CATAMARAN   SEE MORE
BOAT PLANS & FULL SIZE PATTERNS - Package Includes latest sail boat plans, SAILBOAT building plan updates & revisions, PLUS direct contact with the designer.

This CATAMARAN was designed for personal use or charter work and the accommodation was laid out with that in mind.  As you can see by the reports from the owner of the prototype - "The yacht is well up to expectations and it provides all the security and comfort that we expected".  This cat has been fully tested under all types of ocean cruising conditions and is the perfect design for those who want to undertake extended offshore cruising.

FROM EURO CAT 2000 OWNER:   Boat is well up to expectations. Have experienced some heavy weather and are impressed by the stable ride especially to windward. Judy can still use the vacuum cleaner at 30 knots +  She is alo impressed by her washing machine and dishwasher not to mention the deep freeze !!  Large Rig but easily handled by 2 persons.

SEE MORE

CATAMARAN 35-36   FIBERGLASS  SEE MORE

Power & Sail CATAMARAN  BOAT PLANS  & FULL SIZE PATTERNS

OWNERS COMMENTS: "It is great that with 164 HP twins I can now get 30 knots out of her"  "Bruce, I wanted to thank you for all of your help to get to this point, & to let you know how great she turned out.  The boat was incredibly stable & responsive. We had to berth the boat twice in difficult cross winds and your hull design, she performed like it was on rails. No problems at all."  This is a POWER-SAILER CATAMARAN .. the bias is about 60% power and 40% sail ... the boat can be built as a power only vessel or with the added rig as shown.  As for pure sailing CATS; although we have considerable multi hull experience going back to 1961. If you want a good Power-Sailer-CAT then the CAT 470 could be your choice.

This well proven Power Sailer Cat is for those that prefer to build in fiberglass, this boat is easy to build in fiberglass and features cheap mold construction methods as pioneered by Bruce Roberts.


SEE MORE

CATAMARAN 39-395  FIBERGLASS   SEE MORE

Power & Sailing CATAMARAN.
BOAT PLANS  & FULL SIZE PATTERNS
This POWER CATAMARAN was designed to be built using the FIBERGLASS panel construction or ALUMINUM using our CUTTING FILES and boatbuilding techniques. Special pre-scaled drawings are supplied for each hull panel making it simple for the builder to build all of the hull and superstructure as one complete unit.  This is a POWER-SAILER CATAMARAN .. the bias is about 60% power and 40% sail ... the boat can be built as a power only vessel or with the added rig as shown.  As for pure sailing CATS; although we have considerable multi hull experience going back to 1961. If you want a good Power-Sailer-CAT then the CAT 470 could be your choice.

This well proven Power Sailer Cat is for those that prefer to build in fiberglass, this boat is easy to build in fiberglass and features cheap mold construction methods as pioneered by Bruce Roberts.



SEE MORE

CATAMARAN 400   ALUMINUM   SEE MORE

Power & Sail CATAMARAN  CUTTING FILES & BOAT PLANS

This fast power sailer Cat features the FAST construction methods available by using our 100% accurate cutting files and detailed  assembly plans.  SEVERAL MODELS INCLUDING FAMILY, CHARTER & PASSENGER VERSIONS AVAILABLE FOR BUILDING IN ALUMINUM



SEE MORE

 CATAMARAN PS 46-465-470  FIBERGLASS   SEE MORE

Power & Sail CATAMARAN.
BOAT PLANS  & FULL SIZE PATTERNS

This CATAMARAN was designed to be built using the FIBERGLASS panel construction & special pre-scaled drawings are supplied for each hull panel making it simple for the builder to build all of the hull and superstructure as one complete unit. This is a POWER-SAILER CATAMARAN .. the bias is about 60% power and 40% sail ... the boat can be built as a power only vessel or with the added rig as shown.  As for pure sailing CATS; although we have considerable multi hull experience going back to 1961. If you want a good Power-Sailer-CAT then the CAT 470 could be your choice.

This well proven Power Sailer Cat is for those that prefer to build in fiberglass, this boat is easy to build in fiberglass and features cheap mold construction methods as pioneered by Bruce Roberts.




 SEE MORE

CATAMARAN MS 65  STEEL or FIBERGLASS  SEE MORE

PLANS & FULL SIZE PATTERNS FOR STEEL or FIBERGLASS CONSTRUCTION.

The CATAMARAN 65 MS was designed for personal use or charter work or as a people carrier and the accommodation was laid out with that in mind. There will be two basic layouts - personal arrangement as shown here plus an arrangement more suitable for charter use. The building technique is well proven as Bruce Roberts has used similar techniques in building radius chine mono-hulled sail boats since the early 1980'S. Work boat and Ferry versions are available.

This well proven Cat MS 65 is for those that prefer to build in fiberglass, this boat is easy to build in fiberglass and features cheap mold construction methods as pioneered by Bruce Roberts.


SEE MORE

CATAMARAN MS 65  ALUMINUM  SEE MORE
Power and Sailing versions available
CUTTING FILES & BOAT PLANS FOR ALUMINUM CONSTRUCTON.

The CATAMARAN 65 MS was designed for personal use or charter work or as a people carrier and the accommodation was laid out with that in mind. There will be two basic layouts - personal arrangement as shown here plus an arrangement more suitable for charter use. The building technique is well proven as Bruce Roberts has used similar techniques in building radius chine mono-hulled sail boats since the early 1980'S.

This Cat features the FAST construction methods available by using our 100% accurate cutting files and detailed  assembly plans.  SEVERAL MODELS INCLUDING FAMILY, CHARTER & PASSENGER VERSIONS AVAILABLE FOR BUILDING IN ALUMINUM

Work-boat and Ferry versions are also available.




SEE MORE
CAT PS 675  ALUMINUM
Power and Sailing versions available
FERRY & WORK BOAT VERSIONS AVAILABLE.
CUTTING FILES & BOAT PLANS FOR ALUMINUM CONSTRUCTON.

This Cat features the FAST construction methods available by using our 100% accurate cutting files and detailed  assembly plans.  SEVERAL MODELS INCLUDING FAMILY, CHARTER & PASSENGER VERSIONS AVAILABLE FOR BUILDING IN ALUMINUM


SEE MORE

CAT PS 675   FIBERGLASS   SEE MORE
Power & Sailing versions available.

FERRY & WORK BOAT VERSIONS AVAILABLE.

BOAT PLANS  & FULL SIZE PATTERNS

This well proven Power Sailer Cat is for those that prefer to build in fiberglass, this boat is easy to build in fiberglass and features cheap mold construction methods as pioneered by Bruce Roberts.




SEE MORE
Contemporary CAT 785   ALUMINUM  SEE MORE
Power and Sailing versions available
FERRY & WORK BOAT VERSIONS AVAILABLE.
CUTTING FILES & BOAT PLANS FOR ALUMINUM CONSTRUCTON.

CUSTOM PLANS FOR BUILDING IN FIBERGLASS ARE ALSO AVAILABLE.

This Cat features the FAST construction methods available by using our 100% accurate cutting files and detailed  assembly plans.  SEVERAL MODELS INCLUDING FAMILY, CHARTER & PASSENGER VERSIONS AVAILABLE FOR BUILDING IN ALUMINUM


SEE MORE
CATAMARAN   SPORT FISHER - ALUMINUM or FIBERGLASS

Several of our power cat designs are suitable for use as Sport Fisherman.  The Cat 35 (Fiberglass), Cat 39 (fiberglass or aluminum) Cat 46 (Fiberglass) and larger Cats are all suitable for this use.

EMAIL for additional information
