Voyager 495 Page 4 :  Plating the Hull Top Sides)

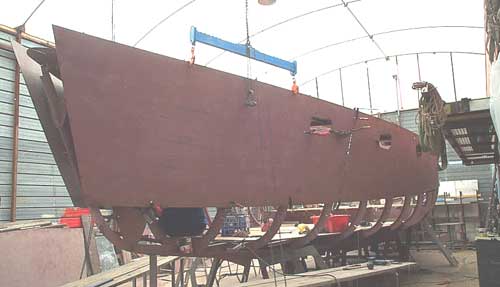

Lifting and tacking the first side plates into position

Here a flat bar has been welded on edge to keep the plate fair.

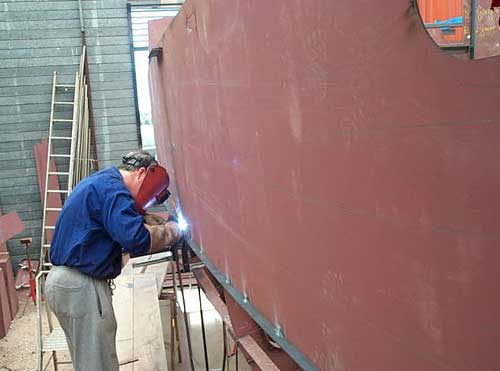

Butting the next plate up to the first, always checking for fairness.

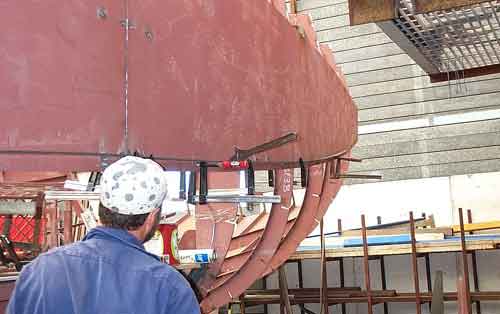

Aligning the plates perfectly and sighting along to check all is fair...
