This is the end product - Now check out the photo
sequence to see how this kit goes together.

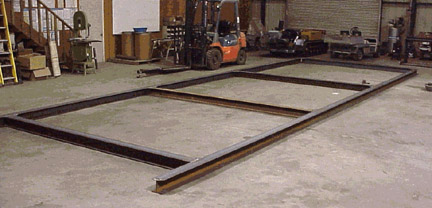

This the preparation for Lee Simpson's TY 620 B being assembled in California

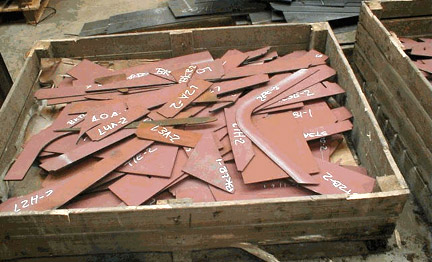

This is how the small parts of the kit are packed - they need to be sorted & Checked.

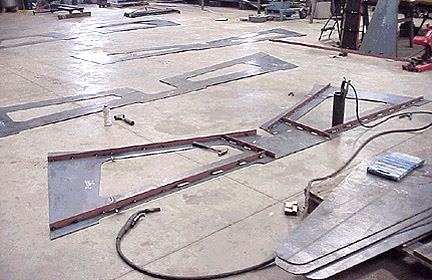

Jig parts are laid out and welded as shown in the plans

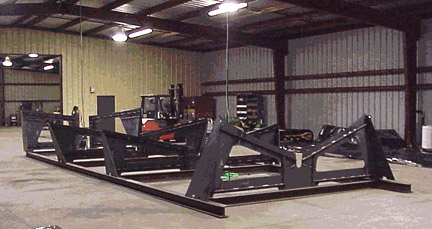

Assembled jigs are installed on " I " beam base

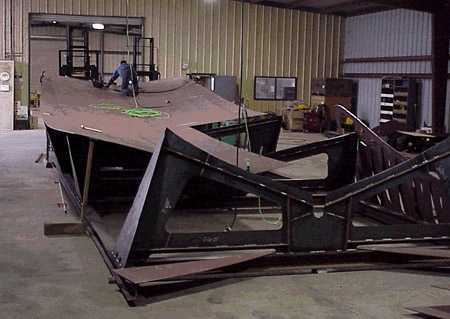

Bottom plates being placed on the building jig - reference lines line up with jig

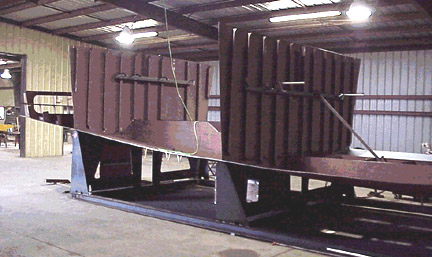

Pre-assembled bulkheads are raised in correct location
Note bases for engine beds between steel bulkheads
