   TY 620 construction photos page 3  Photos....Lee Simpson of California
Lee Simpson's comment ... "As we worked, more and more respect came to Bruce Roberts for his designs. Things that made no sense came to understanding as we flowed through the process"


Two main bulkheads in place - Note swim platform framing.

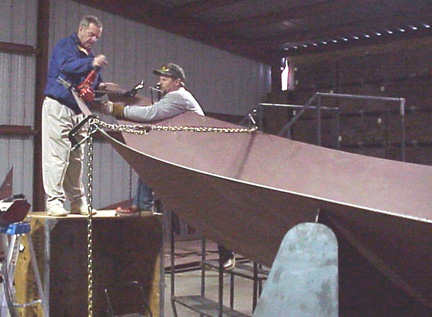

The 1/4"/ 6 mm bottom  plating will need a little coaxing
Accurate cutting assures an perfect fit.

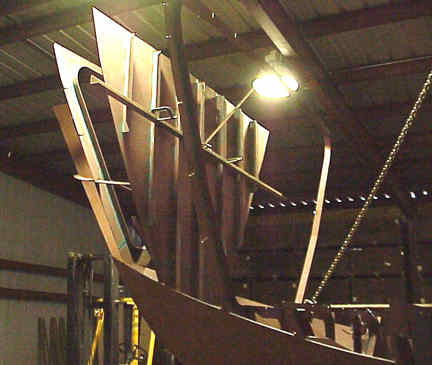

Note substantial stiffening on anchor locker / forward bulkhead

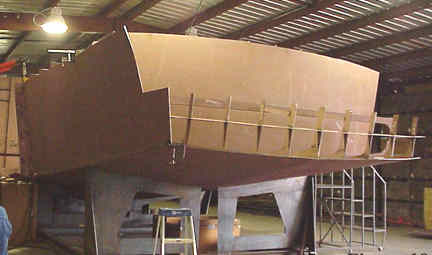

Hull sides in position

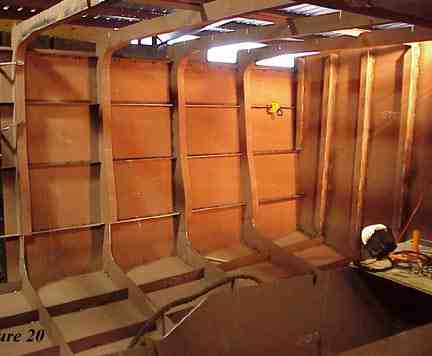

Note substantial framing and bulkhead stiffeners - base for engine bearers shown
