These sailboat plans feature simple & easy to follow STEP by STEP CONSTRUCTION for STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY building methods.  These sailboats can be built by any person with welding skills (Steel or Aluminum) or general handyman skills (Fiberglass or Wood Epoxy).



NO previous boat building skills are needed ... all  you need is to follow the plans and you will be able to build a beautiful STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY sailboat for yourself and your family's happy days on the water.



1. ALL BOAT PLANS & FULL SIZE PATTERNS: Package Includes latest sail boat plans, SAILBOAT building plan updates & revisions, PLUS direct contact with the designer EMAIL BRUCE  & come with a BONUS PLANS - placement of anodes, how to build a sea hood, how to build fuel & water tanks, engine installation, electrical schematic & plumbing; all included to assist you to build your boat.  All the plans are sent by DOWNLOAD directly to your computer. The plans also include the 1,800 PAGE e-book BUILD YOUR OWN SAILBOAT


2. All BOAT PLANS & patterns come with a special DETAIL FOLIO on how to make some of your own fittings.  All BOAT PLANS are have both metric & imperial measurements.  All BOAT PLANS include FULL SIZE frame patterns at no extra charge.



3. Where FIBERGLASS is mentioned as a material this means Balsa sandwich / Foam sandwich, Single skin as the boat building material.  Most WOOD / EPOXY designs can be built using either molded ply or strip plank or a combination of the two methods. Many STEEL designs can be built in ALUMINUM; please seek the designers advice first.



4. We personally check the BOAT PLANS for updates to make sure you receive the latest version; we are constantly updating all of our BOAT PLANS.  PLUS you have direct contact with the designer Bruce Roberts-Goodson.  EMAIL BRUCE


Roberts 246

Build from WOOD EPOXY or FIBERGLASS

PLANS & FULL SIZE PATTERNS

L.O.A. 7.4 m 24'   3"
L.W.L. 6.3 m 20'   8"
BEAM 2.5 m 8'   2"
DRAFT.....fixed keel 1.20 cm 3'   9"
DRAFT......lift keel Max 1.46 cm 4'   3"
  Min 0.5 m 1'   7"
DISPL. 1,703 kg 3,751 lbs
BALLAST 524 kg 1,205 lbs

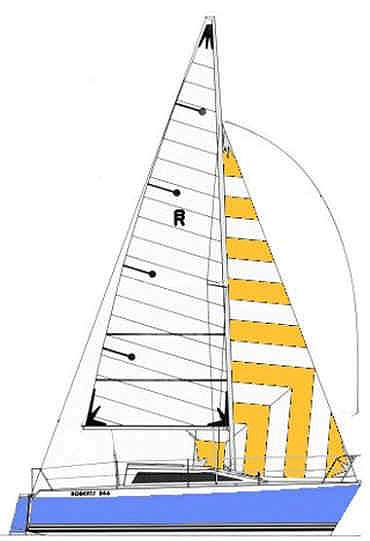

The rig is designed to achieve the maximum  performance of this lively sailboat that is ideal as either a family cruiser or for Club racing where it will do well against any similar sized boat.

Roberts 246 built by and photos courtesy of John and Mandy Farrer

This boat has a spacious interior and full standing headroom throughout.

There are two fixed keel options - either the medium draft or the deeper ultimate performance keel may suit you best.



Above is shown the drop keel version which is combined with the lifting rudder to allow you access to areas where the water is a bit thin !

If you are looking for a handy Club Racer or a high performance trailerable sailboat then the Roberts 246 could suit you. The detailed plans and full size patterns make this an easy boat to build in either wood epoxy or fiberglass.



This illustration shows the male hull mold covered with either thin inexpensive plywood or hard-board followed by the inner fiberglass laminate, next either foam or balsa core and finally the outer layers of fiberglass. Note the area of the keel is not cored but has additional fiberglass laminate to provide maximum strength in this area.

Here we see the construction of the deck and cabin male mold which consists of deck and cabin top frames and battens covered with either thin inexpensive plywood or hard-board followed by the inner fiberglass laminate, either foam or balsa core is then installed and finally the outer layers of fiberglass are laminated in place.



SPECIAL OFFER - ANY THREE STUDY PLANS FOR

99.00 - us$139.00 - 114

CLICK HERE TO LEARN MORE

STEP BY STEP ASSEMBLY PHOTOS INCLUDED WITH ALL STUDY PLANS

BOAT STUDY PLANS ... Delivered by DOWNLOAD to your computer plus we will send you a USB Memory stick with many extra drawings and photos. The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat.

Each STUDY PLAN contains ALL the construction drawings for each material - FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!  L

ists of materials - Technical information - Numerous construction drawings are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE ( VALUE 69.00 )
e-book BUILD YOUR OWN BOAT
.




 ROBERTS 246 + ROBERTS 25


STUDY PLANS PACKAGES



WOOD EPOXY &  FIBERGLASS

79.00 - 69.00 - $99.00


To order STUDY PLANS go to SPECIALS PAGE

and click on  €79.00  BUY NOW BUTTON


COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS ...

Delivered by DOWNLOAD to your computer within 12 hours of you placing your order. The

plans have all the information you need to build your own boat.



Each plan contains all the construction drawings for FIBERGLASS OR WOOD EPOXY

construction, plus bonus drawings covering electrical, plumbing and engineering. Plus you

will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of

materials and equipment, all technical information, numerous construction drawings

andwritten building instructions are all included.



You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in

the plan package. PLUS you receive a FREE ( VALUE 69.00 ) e-book BUILD YOUR OWN

SAILBOAT. Only available at this price if you order off this page.






BUY COMPLETE PLANS & PATTERNS

ROBERTS 246



249.00 - us$299.00 -€295.00

To order STUDY PLANS go to SPECIALS PAGE and


click on  €295.00 BUY NOW BUTTON
