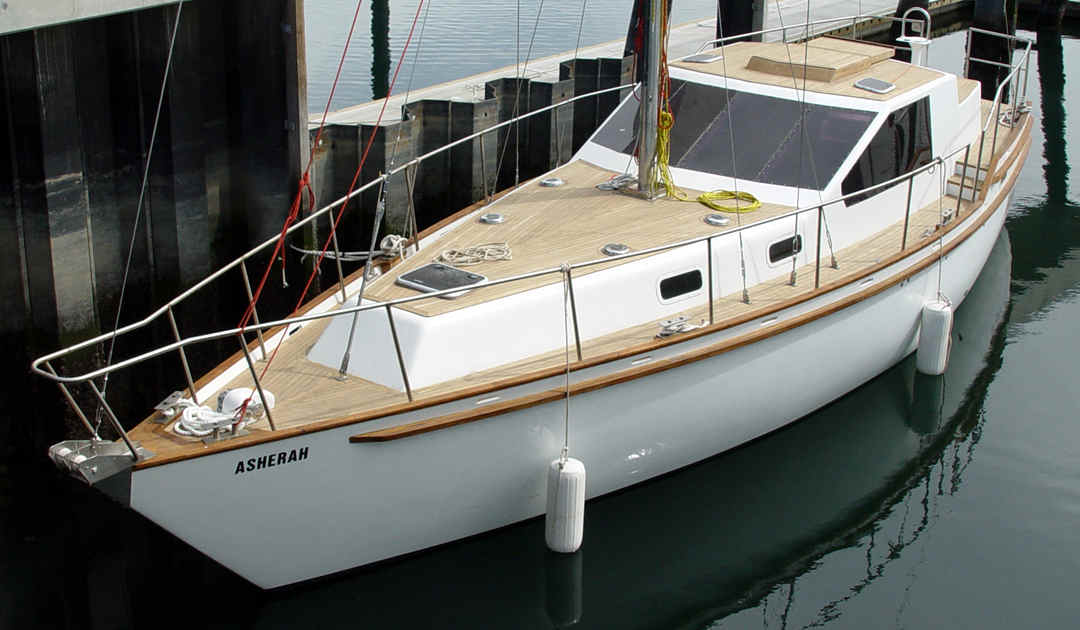

ROBERTS 370 - WOOD EPOXY version built in AUSTRALIA

ROBERTS 370 - MULTI CHINE version built in Norway.

ROBERTS 370 Fiberglass - Steel - Wood / Epoxy
Such has been the response to this design that plans for it's construction are available in steel, aluminum, FIBREGLASS and Wood Epoxy. There is also the choice of constructing the hull in either radius chine, multi chine or round bilge.

Designed as a performance cruiser, this boat has proven itself both in club racing and long distance cruising. Over 500 Roberts 370's have already been completed and several have sailed around the world.

There are several versions of this design as you will notice below. Besides giving you the choice of building this design in either an aft cockpit, center cockpit or pilot house configuration you may also chose between a cutter, sloop or ketch rig. She has proven to perform well with either sailplan. There are several shoal draft and deep keel options to choose from as well.

THERE ARE MANY PHOTOS ON THIS PAGE SO PLEASE BE PATIENT WHILE THEY LOAD!

L.O.A		11.32 m	37' 2"
L.W.L		9.66 m	31' 8"
BEAM		3.76 m	12' 4"
DRAFT	Shallow	1.45 m	4' 9"
	Deep	1.98 m	6' 6"
DISPLACEMENT		8,512 kg	18,750 lb
BALLAST		3,632kg	8,000 lb
AUX. PWR			20 TO 33 hp

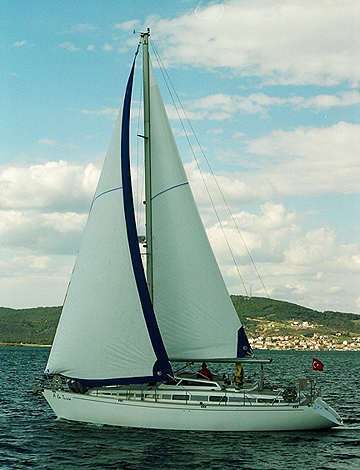

	ROBERTS 370 A This boat was built in Turkey and you can see that the builder did a nice job of building from our plans and frame patterns. STUDY PLAN PACKAGES ON DOWNLOAD or on CD - YOU CHOOSE DOWNLOAD OR CD. . . GIVE ACCESS TO MANY step by step BOAT CONSTRUCTION PHOTOS + PHOTOS OF COMPLETED BOATS ETC. S EE DETAILS ORDER STUDY PLANS
	ROBERTS 370 A Another view of this boat built in Turkey. We are travelling in AEGEAN Seas since three years with our boat made by the plans we bought from you I live in Turkey, my name is Ali Osman Altınkut. Thanks a lot for this pleasure. If you contact me I'd be glad to write the details.
	NEW CUSTOM FEATURE: SAFETY SKEG IS AVAILABLE ON THIS BOAT. The Roberts safety skeg is designed to take the best features from the LONG FIN / SKEG combination and add a SAFETY FACTOR. Many of you may be aware that skegs in general are vulnerable to damage so here is our answer to this problem. EMAIL Bruce to more details of this development .

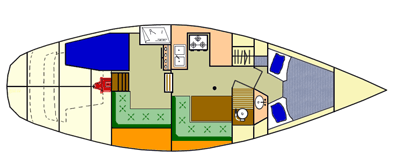

	ROBERTS 370 A accommodation plan of the boat shown above

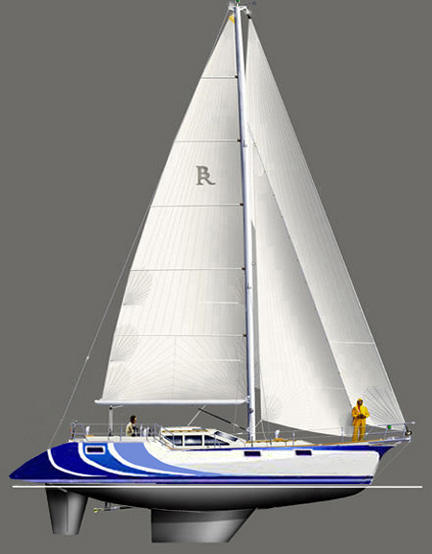

	ROBERTS 370 C There are several alternate sail plans including sloop (shown) or ketch or cutter etc.
	ROBERTS 370 C One of several possible layouts is shown here; all layouts are shown in the plans and study plans.
	ROBERTS 370 C I noticed on boatbuilding you wanted pics. You probably have enough of this model but thought I would offer. your design 370. My name is Dale Stansel bought your plans last year. Have photos in a digitized format of entire construction. I've worked and average of 3 weekend a month for a year. Working alone. If anyone ever asks or thinks it takes forever to build give them my e-mail. Let me know I'm a happy client and would love to help. Roberts 370 version 'C'
	ROBERTS 370 Custom Roberts 370 - Dinette in Pilot house
	ROBERTS 370 Custom Roberts 370 - Dinette in Pilot house
	ROBERTS 370 C Here is one of Your 370Cs near the Adriatic coast (Croatia). Since You were so nice to re-send me "The metal boats", I decided to Thank You with the picture I really like. She has a registered top speed of 12 kts, and has been built in Zagreb, Croatia eight years ago. Best regards, J. Palcic
	ROBERTS 370 D This pilot house version also available as a pre-cut kit
	ROBERTS 370 D Note the different keel options shown in the drawing on left.
	Roberts 370 E This Radius Chine, Aluminum Roberts 370 E was built in Australia
	Roberts 370 E
	This multi chine steel R370 was built in Finland and owner Petra Karklen writes: "Before the first time I sailed her I had been a bit scared about her character and performance. From the beginning it became clear that she performed well and was easily handled. The next few months and many miles of sailing proved it true
	Roberts 370 F This boat was built in Wood / Epoxy by Russ Stevenson who comments "Inkwazi (which is the name of a fish eagle in South Africa) has turned out to be everything we hoped for. She sails extremely well and seems well balanced and will in fact sail herself on all points forward of the beam."
	Roberts 370 F I have sailed on this Roberts 370 F and it is beautifully built and sails like a dream - congratulations to Russ Stevenson
	Roberts 370 F Just of several accommodation layouts for the Roberts 370 - See study plans on DOWNLOAD or on CD - YOU CHOOSE DOWNLOAD OR CD. . . for more information.
