ROBERTS
35 -

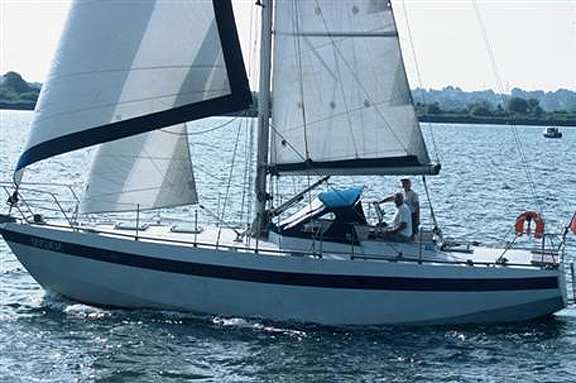

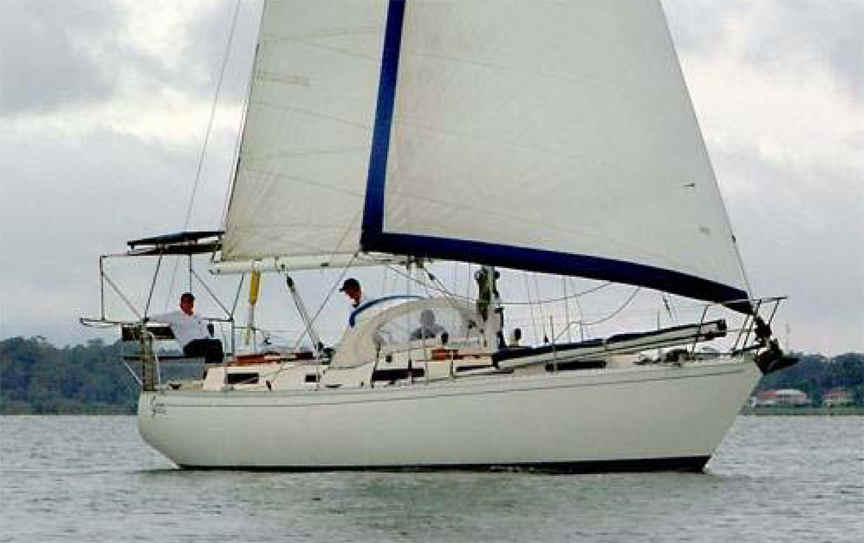

Fiberglass or MC Steel You can build the Roberts 35 in either Round Bilge Fibreglass or in Multi Chine Steel or Aluminium . The complete plans package include many sheets of large-scale drawings, plus full-size patterns for the hull, deck and cabin top beams, etc. |
| L.O.A. | 10.82 m | 35' 6" |
| L.W.L. | 8.41 m | 27' 6" |
| BEAM | 3.35 m | 11' 0" |
| DRAFT | 1.68 m | 5' 6" |
| SAIL AREA | 49.4 sq m | 532 sq ft |
| HEADROOM | 1.96 m | 6' 5" |
| DISPL. | 5,951 kg | 13,120 lb |
| BALLAST | 2,268 kg | 5,000 lb |
| AUX. PWR | 33 hp |
![]()
|
ROBERTS

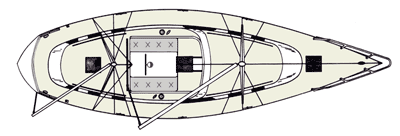

35 Center cockpit Trunk cabin version.

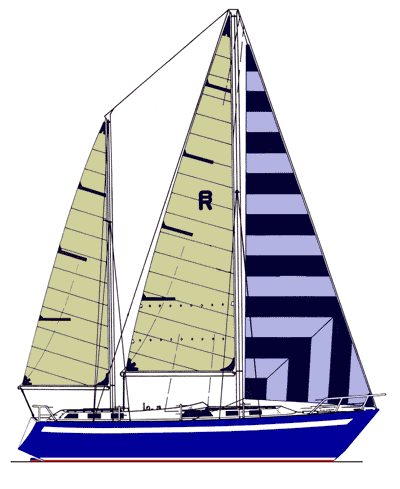

There are several versions of this boat within the same set of plans - all you have to do is decide which material you wish to use to build your Roberts 35. Options include Aft cabin (as shown here) or aft cockpit (see below) also there is a flush deck version. Other alternatives include ketch or cutter rigs remember all these options come in the one plan.
|
|
|
ROBERTS

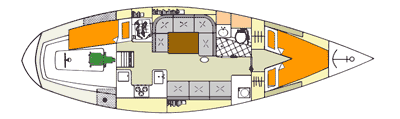

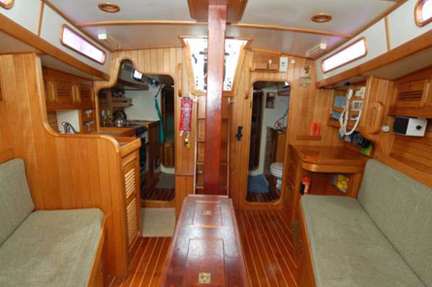

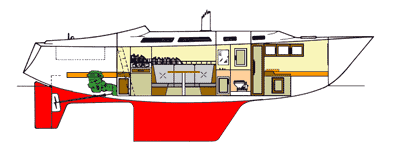

35 Center cockpit Trunk cabin version. Here we see one suggestion as to how to lay-out the accomodation in your center cockpit version. |
|
|
ROBERTS

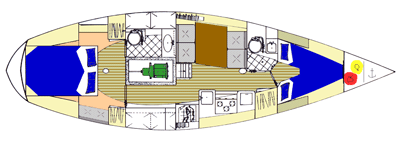

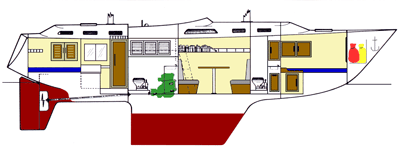

35 Aft cockpit - Trunk cabin version. Here we see one suggestion as to how to lay-out the accomodation in your aft cockpit version.
|
![]() |
ROBERTS

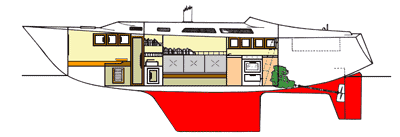

35 Flush deck version Here we see the steel raised deck version. You can build this raised deck boat in either MC steel or fiberglass. |
![]() |
ROBERTS

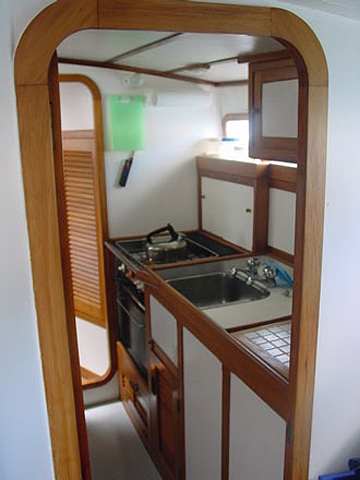

35 Fiberglass or MC Steel Here we see the galley in the center cockpit version. |
![]() |
ROBERTS

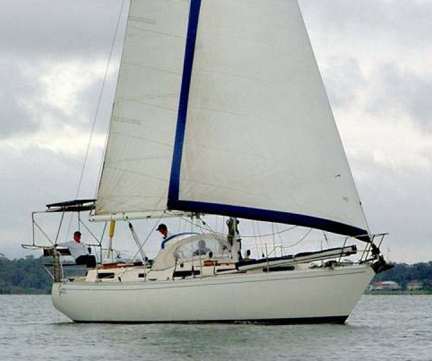

35 Center cockpit Trunk cabin version. |
![]() |
ROBERTS

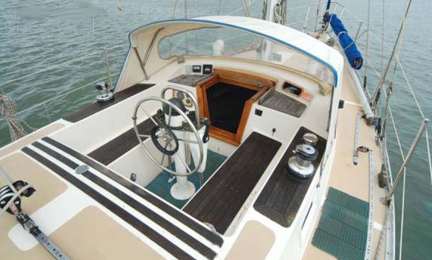

35 Center cockpit Trunk cabin version. Comfortable center cockpit with ample room to seat 4 adults.
Dear Bruce, |
![]() |
ROBERTS
35 Fiberglass or MC Steel One builder customized his interior as shown ... you can change the arrangements to suit your requirements.
|
![]() |
ROBERTS

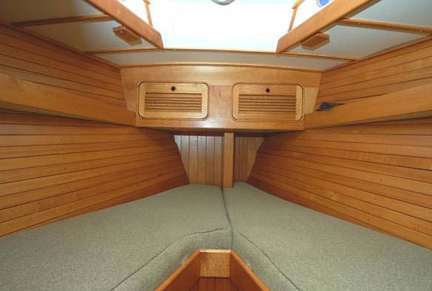

35 Fiberglass or MC Steel This attractive fore cabin shows 'ceiling planking' as the method of lining the interior of the hull. |
![]() |
ROBERTS
35 Fiberglass or MC Steel Here we see the construction of the deck and cabin male mold which consists of deck and cabin top frames and battens covered with either thin inexpensive plywood or hard-board followed by the inner fiberglass laminate, either foam or balsa core is then installed and finally the outer layers of fiberglass are laminated in place.
STUDY PLAN
PACKAGES ON CD GIVE ACCESS TO MANY step by step BOAT
CONSTRUCTION
PHOTOS + PHOTOS OF COMPLETED BOATS ETC. |
![]()
|
Roberts Dinghy FREE with every set of plans and frame patterns you will receive plans and full size patterns for the Roberts Dinghy that you can build in fiberglass, plywood or aluminum as shown below.
|
