The Roberts 19 can be built  in Wood Epoxy by the Molded Plywood method.  A complete set of boat plans and full size patterns are available for building in Wood Epoxy. Trailer boat plans are included in the complete set of boat plans package.

BOAT STUDY PLANS ... Delivered by DOWNLOAD to your computer plus we will send you a USB Memory stick with many extra drawings and photos. The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat. Each STUDY PLAN contains ALL the construction drawings for WOOD EPOXY - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE (value 79.95) e-book BUILD YOUR OWN BOAT .. STUDY PLANS ROBERTS 19 ..  19 - 24 - $33


SPECIAL OFFER: COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS ... Delivered by DOWNLOAD to your computer plus we will send you a USB Memory stick with many extra drawings and photos.  The plans have all the information you need to build your own boat. Each plan contains all the construction drawings for WOOD EPOXY construction, plus bonus drawings covering electrical, plumbing and engineering. Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment, all technical information, numerous construction drawings and written building instructions are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE (value 79.95) e-book BUILD YOUR OWN SAILBOAT. Only available at this price if you order off this page. PLANS & PATTERNS ROBERTS 19  135 - 225 - $165

Roberts 19  Trailerable sailboat

This design is available as two different concepts. Version A or Version B. Version A has a centreboard made from 12mm (1/2") steel plate and an outboard rudder that can be arranged as either a kick up or dagger board type This means that with both raised the Roberts 19 only draws 270mm (10") draft. Version B features a raised deck which, with the trunk cabin, give's a minimum of 1350mm (4' 6") headroom. It also features a fixed keel which, as it only draws 600mm (2'), makes it easily trailerable. Both Versions are included in the study boat plans or complete boat plans package.

The SUPER STUDY PLAN PACKAGE has details of all of the construction techniques and includes materials lists, and accommodation layouts for both trunk cabin or motor sailer versions.

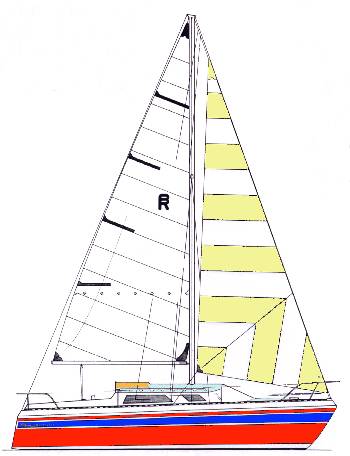

ROBERTS 19 - Version A (centreboard)

L.O.A. 5.86  m 19'    3"
L.W.L. 5.40  m 16'    7"
BEAM 2.20  m 7'    1"
DRAFT... C/B up 0.27cm 0'  10"
                  C/B down 1.08  m 3'    7"
DISPLACEMENT 839 kg 1,850 lb
BALLAST 159 kg 350 lb
Center-board version
Center-board version

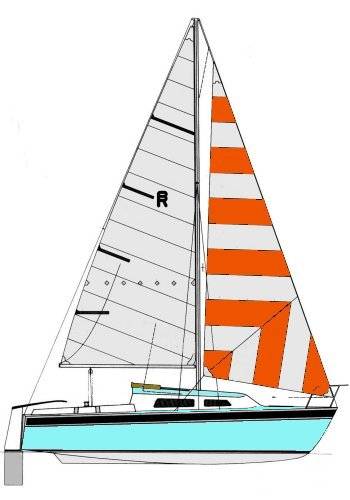

Roberts 19 - Fixed keel version

LOA 5.86 m 19'   3"
LWL 5.4 m 6'   7"
BEAM 2.20 m 7'   1"
DRAFT 61 cm 2'   0"
DISPLACEMENT 839 kg 1,850 lb
BALLAST 209 kg 350 lb
Fixed keel version
Roberts 19
Fixed keel version

Built  by Craig McEwan in Brisbane Australia - Seen here sailing of the Brisbane River ... Also see photos below.

Fixed keel version
Fixed keel version
Roberts 19
Fixed keel version

Craig McEwan

Roberts 19
Fixed keel version

Craig McEwan

Roberts 19
Fixed keel version

Craig McEwan

Roberts 19
Fixed keel version

Craig McEwan



Roberts 19
Fixed keel version



Hi Bruce, My name is Craig McEwan and I've been getting emails from around the world congratulating me on my boat, and asking questions on building. I couldn't figure out how so many people found my web site so I asked how the had seen it and was told on the Bruce Roberts web site. So I went looking and found it, the Roberts 19 "ARINAR" under new launchings. I'm absolutely stoked to see it here, and its Christmas Day, how cool is that. I thoughly enjoyed building it, love being out in it. Thank you for putting here and I'll send you a pic of her sailing.

Merry Xmas, regards Craig



Roberts 19
Fixed keel version

Craig McEwan

Genevieve Desjardins
Yacht "Pere Peinard"
Brisbane AUSTRALIA


"PERE PEINARD"   A Bruce Roberts Trailer Sailor 18 on the Big Duck Pond

 From Montreal, Canada to Brisbane, Australia 18 "Pere Peinard" has failed miserably to live up to it’s designation as a trailer-sailor. But in order to complete the circumnavigation, we will have to fulfil our promise to the Lock-Keeper in Montreal, and trailer the length of the lock since our boat is Officially Undersize by strict regulations governing safe passage through the lock. He let us through the first time, but only because Claude’s father kept hissing to Claude to "sit down! Stay low! When you stand up you make the boat look small!" Fortunately, we had no such restrictions in passing the Panama Canal.

Since most would say the main advantage to mini boats is their trailerability, it is perhaps strange to have chosen to build such a boat for offshore cruising over long distances rather than highway mileage. But Claude, at the age of 18, wanted a boat capable of sailing anywhere despite the limitations of budget, so he decided that he could make up for size in sheer quality. This explanation satisfied me until I saw the worksite, his father’s garage – the glue droppings left from the cold-moulded construction make a perfect outline on the floor with a few inches to spare… "Pere Peinard was the absolute maximum size permitted by the available space. Still building at home enabled him to continue a carpentry job and college as well as working on the boat for the two years it took till launching.

Guided by the principle "Trop fort, na jamais manquer" (too strong, never miss) and doubtless influenced by the screaming winter winds of Quebec, Claude now feels he overbuilt. Be that as it may, it is undoubtedly the one vessel best able to withstand capsize, pitchpole, dropping off waves or other such untried calamities, with flotation built in watertight bulkheads and blown ( in the form of insulating foam) floatation coating the inside of the hull. No thru-hull fittings, a hollow skeg and a watertight deck keep the integrity of the whole. And then, besides security, comfort was a primary concern. This is simply a "question of organisation" which means that with thoughtful effort, it is possible to be as well, if not better, equipped than many a bigger boat. It also needs a rather ruthless elimination of "stuff", after which you can still carry a full set of power tools, generator, typewriter, library, files, sewing machine, and whatever projects especially amuse you. With nine sails aboard, three anchors/chain/line, two sextants, two SW radios, a UHF radio, a spare windvane, etc. we don’t feel that the problem is space at all – our worry is weight rather than room. Being a buoyant stable design, with a fairly flat bottom and twin keels as well as broad beam, the boat sails best with plenty of wind and is not bothered overmuch by sea conditions.

Given a long-term passage, "Pere Peinard" keeps pace with the 25’ cruising set with astonishing ease. This may be due to factors obviously other than the ‘waterline formula’ for speed under sail. Because the rig is comparatively strong, we push the boat to an extreme. Because we are as lazy as the next crew, we get a lot more result out of the same effort spent on sail change aboard a larger boat when more sail is needed… but we are even lazier than the average when it comes to reducing sail. We get a genuine thrill out of surfing at 7 knots, and have on occasion been so excessively carried away that the speedometer’s stuck at 10 knots. By way of illustration, we made the 900-mile doldrum leg between Panama and the Galapagos in 21 days; bigger boats took longer still during the same period unless using diesel power. But the 3000 miles from the Galapagos to the Marquesas sped by in 26 days – 120 miles a day average. For three consecutive days during the run we averaged 143 miles… we arrived in the Marquesas only two days after our fleet of big-boat friends. So, although we sometimes have the discouraged urge to go Faster, this handicap of slowness has never jeopardized our safety, nor has it slowed us down in the long run.

Nevertheless we continue to lighten the boat as much as possible. In all, there’s not much more we could ask of any boat than we are not already given by "Pere "Peinard". Maybe it hasn’t been much of a trailer sailer, but as home to us and our CATAMARANs, it has given us all kinds of different scenery out the windows. Signed    Genevieve Desjardins
