NEW ! SUPER STUDY PLANS - ANY THREE STUDY PLANS ON CD. The study plans have lists of materials & equipment etc ... these will be a great help in costing out the completed vessel. Each CD contains - ALL the construction drawings of your choices of ANY THREE STUDY PLANS with up to 25 sheets per plan! Lists of materials - Technical information - Performance graphs - Numerous construction photographs ETC. You can view & print the drawings in full or in sections. PLEASE INDICATE WHICH STUDY PLANS YOU WANT TO ORDER in the SPECIAL INSTRUCTIONS BOX on the ON-LINE-ORDER-FORM & or EMAIL your wishes us$99 / € 70 / £64. Includes FREE e-BOOK BUILD YOUR OWN POWER BOAT on CD. HUNDREDS OF STEP BY STEP BUILDING PHOTOS ARE INCLUDED IN THE STUDY PLANS ON CD PACKAGE. INCLUDES PRICES ... ORDER |
EURO 1OOO
Steel Kit or
Cutting files & plans
This boat is designed in accordance with Lloyds, which is
much better than the EU and other Classification Societies and the CE-A
require. Complete stability calculations are included in the design
package. All calculations are also cross referenced against ABS
requirements to ensure that the design meets world-wide standards and
specifications.
In the case of KITS, all plate parts belonging to the hull, deck and superstructure that are accurately cut to size are included. The parts are marked with the appropriate part number and engraved matching marking lines to assist in the assembly and location of the part in its position. Cutting method is Plasma / Oxygen, ensuring highest accuracy and smooth edges.
Plate parts are cut from Lloyds approved A Grade
Shipbuilding quality steel that has been coated with factory applied Sigma
weld MC welding primer. We use and recommend steel plate that has the
official designation ISO standard 10474 or EN 10204 with 3.1.B
certificate.
|
| L.O.A. | 31 ft - 11 ins | 9.75 m |
| L.W.L. | 28 ft - 02 ins | 8.54 m |
| BEAM | 12 ft - 04 ins | 3.76 m |
| DRAFT | 3 ft - 09 ins | 1.14 m |
| AIR DRAFT | 8 ft - 02 ins | 2.49 m |
| DISPLACEMENT | 19,000 lbs | 8,636 KG |
| POWER | 60 - 120 HP |
|
|

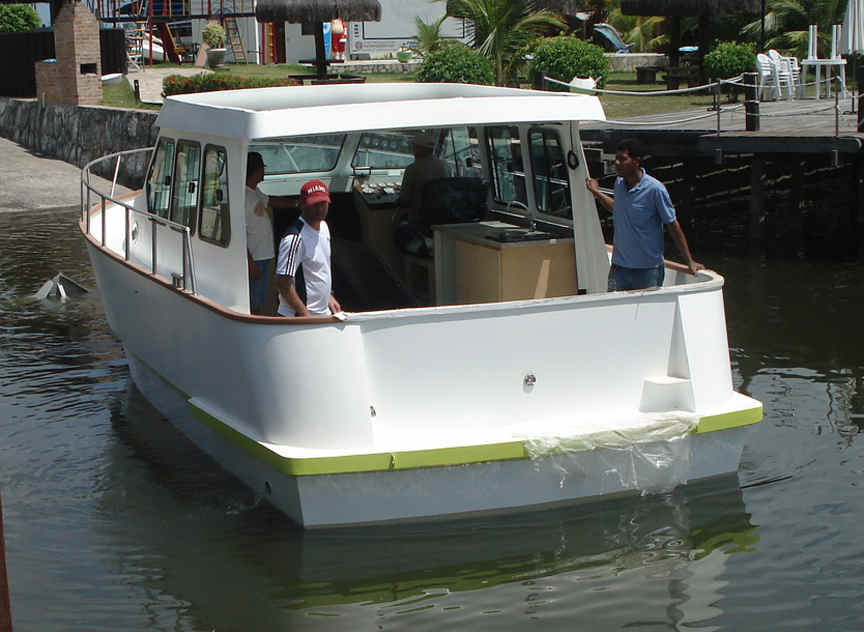

EURO 1000 FAMILY POWERBOAT Built by Marcos Medeiros in Brazil |
|
|

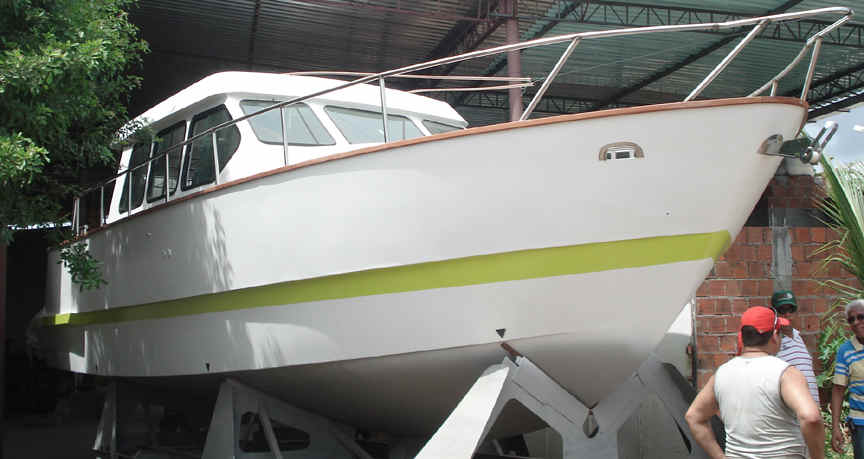

EURO 1000 FAMILY POWERBOAT Built by Marcos Medeiros in Brazil |
|
|
EURO 1000 FAMILY POWERBOAT The Euro 1000 is one of our most popular kits - you can start with one of our kits or use the cutting files to have your kit cut locally. |
|
|
EURO 1000 Euro 1000 m assembled from BR kit is Belgium STUDY PLAN PACKAGES ON CD GIVE ACCESS TO HUNDREDS OF step by step BOAT & KIT ASSEMBLY PHOTOS ... See details
|
|
|
EURO 1000 FAMILY POWERBOAT Prototype Euro 1000 being assembled from a kit in Queensland Australia |
|
|
EURO 1000 Euro 1000 deck plan
|
|
|
EURO 1000 Euro 1000 accommodation plan
|
|
|

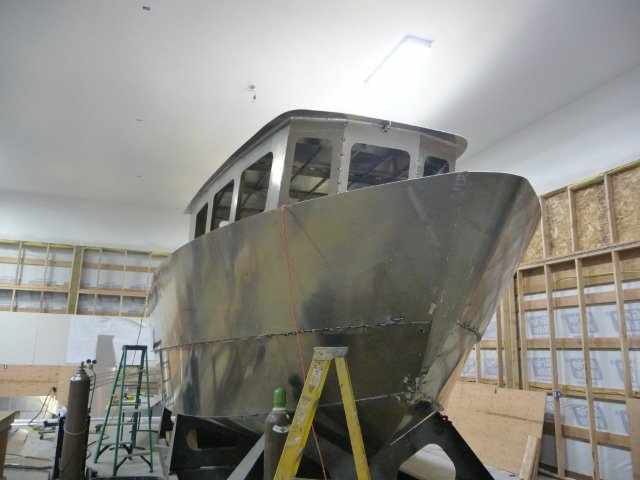

EURO 1000 FISHERMAN WORK BOAT EURO 1000 - Coastworker version. |
|
|
EURO 1000 Euro 1000 / Custom / Workboat version
|
|
|
|
KIT DESIGNS: NEW CUSTOM PLANS IN FIBERGLASS OR WOOD EPOXY. Many of you admire our range of kit designs but you would prefer to build in other materials … Consequently we have had many requests to provide alternative custom plans for building in fiberglass or wood epoxy. ATLANTIC POWERBOAT KIT DESIGNS - FIBERGLASS To check out the Fiberglass construction techniques that will be reflected in the plans and full size frame patterns … REFER to the BUILD YOUR OWN POWERBOAT … chapters 12 and 13 ATLANTIC POWERBOAT KIT DESIGNS – Wood Epoxy To check out the Wood Epoxy techniques that will be reflected in the plans and full size frame patterns … REFER to the BUILD YOUR OWN POWERBOAT … chapter 14 |
