Waverunner 24 -
PLYWOOD PLANING HULL
This is the first boat
Bruce designed back in 1968 and several were built at Marine Park Brisbane. Since
that time hundreds of these Waverunner 24s have been built and used throughout the world.
| LOA |
24' 3" |
7.31 M |
| LWL |
21' 6" |
6.25 M |
| BEAM |
9' 5" |
2.74 M |
|
DRAFT |
1'
3" |
1.07
M |
| DISPLACEMENT ( Weight on
trailer ) approx |
1,723 kg |
3,800
lb |
As one builder attests, this
design will cruise at 25 knots with only a 100 Hp diesel, and the boat plans and
Full Size Patterns are available for PLYWOOD .
The SUPER STUDY PLAN PACKAGE includes materials lists as well
as the layouts to scale
|
|
| Waverunner 25
....
(Steel or Aluminum)
There are drawings on this
page, please read the following while they load:
This design has been especially designed for steel construction and special
care has been taken to provide for adequate displacement to build in this material. This
vessel has been designed for frameless construction, the stiffness being provided by the
careful placement of the bulkheads.
We feel that this hull will offer speeds in the high
end of the displacement scale provided the builder follows the methods described in the
boat plans. The hull lines were drawn on specially designed software that enables us to offer
fully developed Full Size Frame Patterns. The plating will literally "drape"
over this framework resulting in no difficult plate forming.
Here we see a nice example of the WAVERUNNER 25
|
| Waverunner 25 |
Regular version |
Regular version |
Trailerable
version |
| L.O.A. |
7.90 m |
25' 10" |
25' 10" |
| L.W.L. |
7.21 m |
23'
8" |
23'
8" |
| BEAM |
3.05 m |
10' 0" |
8' 0"
2.49 m |
| DRAFT : Minimum
and Max shown. |
0.60 cm
- 1.00 m |
2' 0"
- 3' 3" |
Note:
Either version can be built of STEEL or
ALUMINUM |
| DISPLACEMENT : approx |
3,084 kg |
6,800 lb |
|
| POWER |
100 to 130 hp |
| SPEEDS |
10 to 20 kts |
 |
Waverunner 25
....
(Steel or Aluminum)
This is one of our smallest boats that you can
build in steel or aluminum. The semi displacement hull will perform well and
makes an ideal first metal boatbuilding projcect,
STUDY PLAN PACKAGES ON DOWNLOAD GIVE ACCESS TO MANY
step by step BOAT CONSTRUCTION PHOTOS + PHOTOS
OF COMPLETED BOATS ETC. |
 |
Waverunner 25
....
(Steel or Aluminum)
This boat has a roomy cockpit and is suitable
for family cruising.
|
Waverunner 25
....
(Steel or Aluminum)

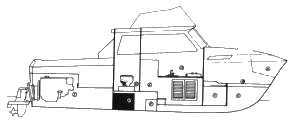

The drawing on the left shows a V drive engine
installation but regular drive can be used by locating the engine further
forward and using the engine box as a table.
|
Waverunner 25
....
(Steel or Aluminum)
The accommodation can be varied to suit your
preference.
|
Waverunner 25
....
(Steel or Aluminum)
Here is another suggestion for the accommodation
which can be varied to suit your preference. The arrangement shown on left
is more of a day boat layout.
|
Waverunner 25
....
(Steel or Aluminum)
The accommodation shown here would suit a couple.
|
 |
Waverunner 25
....
(Steel or Aluminum)
Roberts "Dutch Style"
Powerboat
This boat was actually built over a stretched
steel Waverunner 25 but is could be built over a WR28 or Coastworker 25 or CW30 or similar
design. |
 |
