EURO 2150 - Build in Aluminum, Steel or Wood Epoxy
This design is also available in other sizes -
24 m & 26 m Email Bruce for details.

EURO 2150 - Wood Epoxy version nears completion in INDIA

See above and below - recent photos received from the builder.

See above - two recent photos received from the builder.

Building a Bruce Roberts designed Wood / Epoxy Motor Yacht in India

By Jake Kavanagh on October 24, 2018

Boat builder Abdul Hakeem has created this stunning 70-foot yacht from wooden laminates and equipped her like a superyacht.

Epoxycraft is always delighted to hear from its global community of dealers and customers, and when we received an email from Abdul Hakeem of Sulkha Shipyard in India, we were greatly impressed with his new build of a Bruce Roberts Euro 2150 motoryacht.

About Bruce Roberts

Bruce Roberts-Goodson is something of a legend in the boat building industry, and his website contains off-the-shelf plans for literally hundreds of designs. These include small sailing yachts, catamarans, blue water cruisers and a wide range of motorboats. Roberts is probably best known in sailing circles for his Spray design of sailing yacht.

As the website states “If you have an idea about your dream boat, send us a photo or a sketch, and we will prepare plans and patterns for you.”

This 70-foot yacht was built entirely in wood laminates using WEST SYSTEM® epoxy – the result is stunning.  This is perhaps not entirely unexpected, as Abdul hails from the Thalangara family that has been building boats in the Kannur region of India for nine generations. As Abdul explained, he has a mission to build the best boat he can for the minimal amount of timber. This is where WEST SYSTEM products have been able to help.

“In the beginning of my boat building career, I was supported by my father, for whom boatbuilding is a passion,” he told EC. “I began to think that building in timber should be eco-friendly, so wanted to reduce the amount of wood required. I happened to meet Mr Patric, a European boat builder from whom I learned a great deal about laminating boats in wood. In 1990, when I formed Sulkha Shipyard, my main intention was therefore to build boats using lamination techniques.”

It was around this time that Abdul also met a legendary boat designer, Bruce Roberts, at the London Boat Show.

“He is the pioneer of wooden boat design,” Abdul said. “He provided me with a design, and all kinds of information about how to achieve the build. He suggested I use WEST SYSTEM epoxy and I had some additional help from his colleague Mr Andy of Australia, Ms Lorraine Murray of ATL Composites, and Mr Whitaker of the USA.”

Abdul says that he used many different techniques in the actual build, although “-some of them were totally different from other boat builders, or different from normal practice. The result was very positive, and we were astonished to see the final result.”

Building in a hot and humid climate places several constraints on the use of epoxy, especially with curing times, but Abdul says he completed the project using WEST SYSTEM 105 epoxy resin and WEST SYSTEM 209 extra slow hardener.

No expense was spared on the fitout. The yacht has two master cabins and one guest/crew cabin, and the spacious saloon can accommodate six guests. Entertaining them is a 54in 4K TV and Bose theatre system, with a Dometic 180,000BTU aircon system to keep everyone cool. Propulsion comes from twin Volvo 800hp diesels fed by a 5,000lt tank, with domestic power created by a pair of Fischer Panda 30Kv generators. The yacht also has a 110ltr/hr Sea Recovery watermaker. The interior fitout, including all the furniture, floors and wall paneling is made from solid teak.

“This highly finished boat has become the talk of the town,” Abdul said. “We want to thank Mr Bruce Roberts-Goodson’s team for all their patience and co-operation throughout the project, and are also grateful to Mr Rick Barkuff of Maine Landing School. The yacht will be attending many boat shows, and people are already anticipating its arrival. I am fully satisfied with the strength of her epoxy laminate, and of her stability and speed. She looks beautiful in her finish of natural wood.”

For more information about this remarkable build you can contact Abdul directly at abdulhakeemdoha1956@gmail.com

Bruce Roberts Euro 2150 tech specs.

Type: Twin screw motor yacht

LOA: 21.36m (70ft 0in)

LWL: 18.97m (62ft 3in)

Beam: 6.55m (21ft 6in)

Draft: 1.14m (3ft 9in)

Power: Twin 800hp diesels.

Construction: Wood epoxy laminate

(Can also be built in steel, aluminium or composite)

Builder: Sulkha Shipyard, Kannur-670009 India

Designer: Bruce Roberts-Goodson,

NEW ! SUPER STUDY BOAT PLANS ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat. Each STUDY PLAN contains ALL the construction drawings for each material - WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE (value 79.95) e-book BUILD YOUR OWN BOAT Please note that when you receive your credit or debit card statement the amount will be converted to YOUR local currency.



STUDY PLANS EURO 2150 ALL VERSIONS

STEEL, ALUMINUM, FIBERGLASS

£69.00 - us$99.00 - €79.00

To order STUDY PLANS go to SPECIALS PAGE and click on  £69.00 PAY NOW BUTTON





SPECIAL OFFER - ANY THREE STUDY PLANS  FOR
£99.85
us$128.95
€114.95

CLICK HERE TO LEARN MORE

STEP BY STEP ASSEMBLY PHOTOS INCLUDED WITH ALL STUDY PLANS

SPECIAL INTRODUCTORY OFFER: COMPLETE WOOD EPOXY PLANS & FULL SIZE PATTERNS ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order. The plans have all the information you need to build your own boat..

Each plan contains all the construction drawings for PLANS & FULL SIZE PATTERNS for WOOD EPOXY construction, plus bonus drawings covering electrical, plumbing and engineering, everything you need to build your boat.

Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment are all included plus all technical information, numerous construction drawings and written building instructions are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE (value 79.95) e-book BUILD YOUR OWN SAILBOAT .. Only available at this price if you order off this page.




                 EURO 2150 WOOD EPOXY PLANS & FULL SIZE PATTERNS

£995 - 1,125 - $1,275

To order COMPLETE PLANS go to SPECIALS PAGE & click on £995 PAY NOW BUTTON

EURO 2150  MOTOR YACHT ... There are several accommodation arrangements possible for this design.

WOOD EPOXY ... Calculations, Plans, Construction drawings, engineering drawings & full size frame patterns.

This Motor Yacht is ideal for those who seek a motor yacht that combines the ultimate comfort with seaworthiness all wrapped in a stylish package that will assure your pride of ownership. Several of these yachts have already been built in Fiberglass and Steel and Aluminum. One of our cut-to-size kits will make the quick and easy to build.

Minimum power requirement for the semi-displacement version would be twin 250 hp - 500 hp with cruising speeds of 12 to 16 knots.

A planing version is available to those who are looking for speeds in excess of 16 knots. In the planing version, twin 1050 hp engines should be capable of driving this boat to speeds in excess of 30 kts.

This boat is designed in accordance with Lloyds  for Category 1 (unrestricted operating / sailing area), which is much better than the EU and other Classifion Societies and the  CE-A require. Complete stability calculations are included in the design package. All calculations are also cross referenced against ABS requirements to ensure that the design meets world-wide standards and specifions.

L.O.A. 21.36 m 70'   00"
L.W.L. 18.97 m 62'   03"
BEAM 6.55 m 21'   06"
DRAFT (hull) 1.14 m 3'   09"


EURO 2150 Motor Yacht WOOD EPOXY
B
oat plans & FULL SIZE FRAME PATTERNS.

This design is also available in other sizes - 24 m & 26 m
Email Bruce for details.

EURO 2150 Motor Yacht WOOD EPOXY
B
oat plans & FULL SIZE FRAME PATTERNS.

Top: The roomy fly-bridge will accommodate several guests as well provide stowage for the dinghy.

Bottom: This layout shows the captains cabin on the main deck. See below for alternative layouts.

EURO 2150 Motor Yacht WOOD EPOXY
B
oat plans & FULL SIZE FRAME PATTERNS.

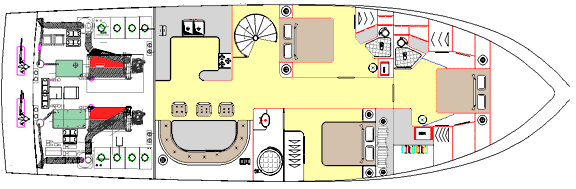

This layout shows the galley and dinette on the accommodation deck;  this was the layout requested by the original client for this design; you may have these facilities on the main deck.

EURO 2150 Motor Yacht WOOD EPOXY
B
oat plans & FULL SIZE FRAME PATTERNS.

This arrangement shows the captains cabin in the bow and incorporates a separate entrance from the main deck.

See the study boat plans on DOWNLOAD or on USB Memory Stick.
See study plans for additional suggested accommodation arrangements and alternative layouts
