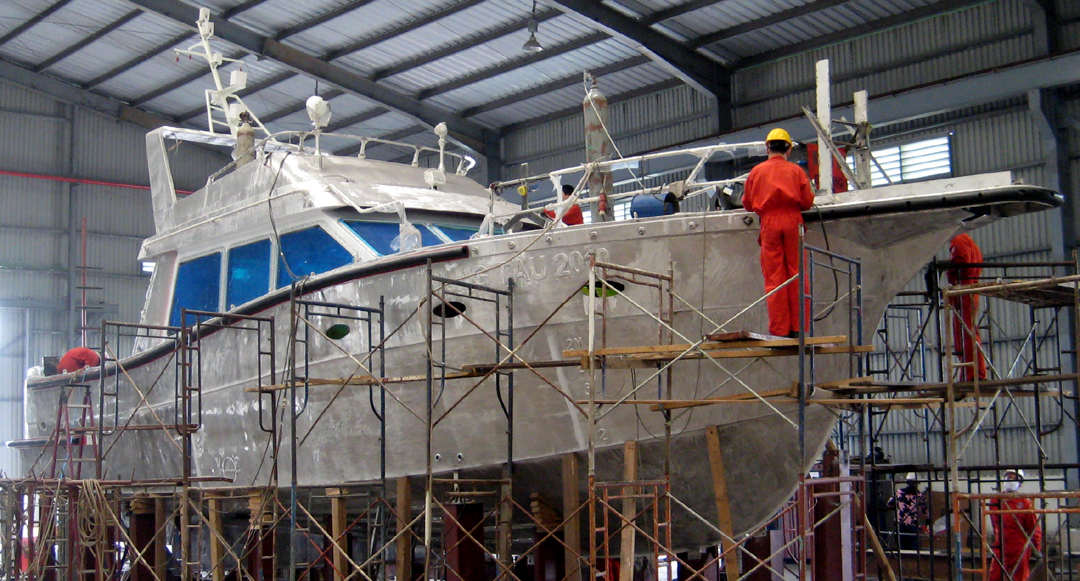

Hi Bruce,   We are about to launch the Atlantic 50 in the next couple

 of weeks.    Here attached some progress pictures, we will send

you a full set once fully  completed in and out. Regards Gerard


SEE ALL SIZES OF FISHING BOATS



SUPER STUDY BOAT PLANS  ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.  The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat.

Each STUDY PLAN contains ALL the construction drawings for each material - STEEL or ALUMINUM as applicable to the particular boat plan - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. e-book BUILD YOUR OWN (Sail or Power) BOAT you receive a FREE ( VALUE

69.00 ) e-book BUILD YOUR OWN POWER BOAT'




STUDY PLANS - ATLANTIC 50



 ALUMINUM


69.00 - us$99.00 -€89.00 - A$129.00

To order STUDY PLANS go to SPECIALS PAGE



and click on  69.00  BUY NOW BUTTON

SPECIAL OFFER - ANY THREE STUDY PLANS  FOR

99.00 - us$129.00 -€119.00 - A$189.00


CLICK HERE TO LEARN MORE



STEP BY STEP ASSEMBLY PHOTOS INCLUDED WITH ALL STUDY PLANS

LOA ... 15.24 m  / 50'-0"
LWL 13.97 m  / 45'-10"
Beam 4.60 m  / 15'-09"
Draft........1.00 M / 3'-03"
Displ ...Varies with material.
Engine (s) 600 to 1,200 HP



ATLANTIC 50 Sport fisherman
Boat Plans & Cutting Files

STEEL or ALUMINUM versions - Speeds to 30 Knots.

If you want Planning speeds with reasonable HP then the WEIGHT of steel is a problem so you should build this boat in aluminum or if you insist on steel construction then you must be prepared to install additional HP !  If you are satisfied with say 12 knots then you may consider building in steel.

The underwater view reveals our proven moderate V sections which combine good handling and performance with a comfortable ride.


ATLANTIC 50
Sport fisherman

Here we see the layout chosen by the first client for this new boat - you can customize the interior to suit your needs.



NOTE: We now have an excellent set of construction photos plus many photos of completed ATLANTIC SPORT FISHERMAN that are available with the STUDY PLAN PACKAGES


ATLANTIC 50
Sport fisherman

The photos shown here are taken looking forward in the interior of the salon in the fiberglass version of this design.



ATLANTIC 50
Sport fisherman

The photo shown here is of the port side of the salon of the fiberglass version of this design.



NEW!  ATLANTIC 495
Sport fisherman boat plans. This new smaller version is available as a custom design for building in FIBERGLASS or WOOD EPOXY. The interior can be arranged to suit the builders wishes ...
EMAIL BRUCE for more information about this new design.

SEE ATLANTIC 40 ... STEEL OR ALUMINUM

PLANS & CUTTING FILES

 OR CUTTING FILES for building in steel or aluminum

SEE CABO 50 - boat plans & Frame Patterns for

building in FIBERGLASS

SEE ATLANTIC 550 ... boat plans for building in

 FIBERGLASS OR Wood / Epoxy


LEFT: LINKS TO OTHER SPORT FISHERMAN THAT YOU CAN BUILD.
ATLANTIC 50
Sport fisherman

The photo shown here is of the interior of the fiberglass version of this design.



ATLANTIC
Sport fisherman

Atlantic Command station shown here can be used in several of our Atlantic and Euro motor yacht designs.

ATLANTIC
Sport fisherman

This is a photo of the fiberglass version of this designs ... see CABO 50

or details.

ATLANTIC
Sport fisherman

This is a photo of the flybridge on fiberglass version of this design

SPECIAL INTRODUCTORY OFFER: COMPLETE BOAT PLANS & CUTTING FILES ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.   The plans have all the information you need to build your own boat.. Each plan contains all the construction drawings for STEEL OR ALUMINUM construction, plus bonus drawings covering electrical, plumbing and engineering, everything you need to build your boat.

Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment are all included plus all technical information, numerous construction drawings and written building instructions are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE ( VALUE 69.00 ) e-book BUILD YOUR OWN POWER BOAT .. Only available at this price if you order off this page.




PLANS & CUTTING FILES ATLANTIC 50


995 - €1,195 - $1,295 - A$1,995


TO ORDER PLANS & CUTTING FILES  EMAILBRUCE FOR



SPECIAL OFFER & PAYMENT INFOMATION.
