These sailboat plans feature simple & easy to follow STEP by STEP CONSTRUCTION for STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY building methods. These sailboats can be built by any person with welding skills (Steel or Aluminum) or general handyman skills (Fiberglass or Wood Epoxy).

NO previous boat building skills are needed ... all you need is to follow the plans and you will be able to build a beautiful STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY sailboat for yourself and your family's happy days on the water.

1. ALL BOAT PLANS & FULL SIZE PATTERNS: Package Includes latest sail boat plans, SAILBOAT building plan updates & revisions, PLUS direct contact with the designer EMAIL BRUCE & come with a BONUS PLANS - placement of anodes, how to build a sea hood, how to build fuel & water tanks, engine installation, electrical schematic & plumbing; all included to assist you to build your boat. All the plans are sent by DOWNLOAD directly to your computer. The plans also include the 1,800 PAGE e-book BUILD YOUR OWN SAILBOAT

2. All BOAT PLANS & patterns come with a special DETAIL FOLIO on how to make some of your own fittings. All BOAT PLANS are have both metric & imperial measurements. All BOAT PLANS include FULL SIZE frame patterns at no extra charge.

3. Where FIBERGLASS is mentioned as a material this means Balsa sandwich / Foam sandwich, Single skin as the boat building material. Most WOOD / EPOXY designs can be built using either molded ply or strip plank or a combination of the two methods. Many STEEL designs can be built in ALUMINUM; please seek the designers advice first.

4. We personally check the BOAT PLANS for updates to make sure you receive the latest version; we are constantly updating all of our BOAT PLANS. PLUS you have direct contact with the designer Bruce Roberts-Goodson. EMAIL BRUCE

SEE WHAT OTHERS HAVE TO SAY ABOUT OUR DESIGNS & SERVICE

PLEASE NOTE: The designs where there is a YELLOW BACKGROUND are the designs for which CUTTING FILES are available.

Spray 22 Trailerable

ALUMINUM, STEEL, FIBERGLASS or WOOD / EPOXY


L.O.A.	7.31 m	24' 0"
L.O.D.	6.50 m	21' 4"
L.W.L.	5.20 m	16' 11"
BEAM	2.39 m	7' 10"
DRAFT	0.76 m	2' 6''
Trailerable Weight	1,007 kg	2,219 lb
Loaded Displ	1,331 kg	2,935 lb
BALLAST	317 kg	700 lb

BOAT PLANS & FULL SIZE PATTERNS - Package Includes latest sail boat plans, SAILBOAT building plan updates & revisions, PLUS direct contact with the designer. Over 500 examples of the Spray 22 have been built and this is a ideal first boatbuilding project that you can complete in one season and sail the next.

FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

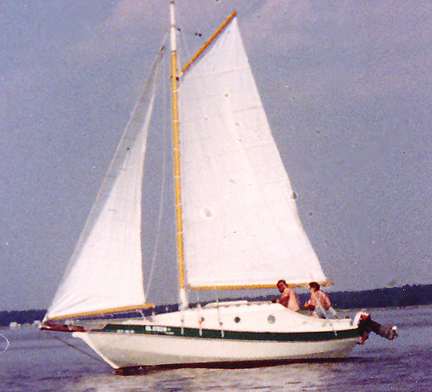

Spray 27 Trailerable

ALUMINUM, STEEL, FIBERGLASS or WOOD / EPOXY

CUTTING FILES ARE AVAILABLE FOR THE SPRAY 27

L.O.D.	8.23 m	27' 0"
L.W.L.	6.55 m	21' 6"
BEAM	2.59 m	8' 6"
DRAFT	0.84 m	2' 9"
AUX PWR		10 hp
Trailerable Weight	1,500 kg	3,306 lb
Loaded Displacement	1,825 kg	4,023 lb



Spray 27 Version A (Standard Coach House)

Hi, Bruce: In September 1999 I had the transom plate rolled and it was the first plate I tacked on my boat (27 Spray). Well, I would like to let you know that yesterday July 22 I finally finished welding the whole hull. Considering I left for last the keel plate I had a professional welder finished it. It looks real strong. Now I can concentrate in sanding the hull and prime it so I can roll it over. Maybe two weeks. Thank you for your support...Art

Here we see the profile and plan view of the ( Pilot house ) version B accommodation. Other layouts are possible and many builders make changes to suit their own particular requirements.

After several builders asked for a trailerable stretched version of the Spray 22, we produced the Spray 27.....This boat is incredibly popular ... over 300 sailing world-wide. There are two basic layouts - either regular or pilot house - and either can be rigged with a gaff sail plan or as a Bermudan sloop. Both regular Trunk cabin and Pilot house versions for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up the boat plans. CUTTING FILES are available for building in STEEL or ALUMINUM

Greetings, Bruce. My name is Igor. I am a Russian architect. Excuse for the bad English as this is an electronic translation. I live in Siberia near to beautiful big lake Baikal. I very much wanted to construct a boat and 4 years ago I found on the Internet the description of your Spray 27.

You have sent me drawings by e-mail. I have a little changed the project. 2 years proceeded construction. The hull - metal, with a wooden cabin. I have named her *Mobi Dick*. In August 2006 I and my wife of 2 weeks travelled across Baikal.

On travel the boat has very much liked me. She is reliable. She is not overloaded with sails. Allows me to operate alone. Long Keel is super. She goes against a wind! Many friends have become interested in this project and now 3 more hulls are in work. SEE MORE PHOTOS OF THIS BOAT IN STUDY boat plans PACKAGE. I want to thank you for the successful project. Best regards! Igor V.Logvanov.

FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

Spray 28

STEEL, ALUMINUM or WOOD / EPOXY

Plans and full size frame patterns

L.O.D.	8.70 m	28' 0"
L.W.L.	7.00 m	22' 11"
BEAM	3.20 m	10' 6"
DRAFT	1.06 m	3' 6"
DISPL.	5,900 kg	13,600 lb
BALLAST	1,814 kg	4,000 lb
AUX PWR		20 hp

There are over 500 examples of this design currently sailing in all parts of the world. If you would like to read more about the exploits of the Spray 28 and their owners, check out Bruce Roberts-Goodson's book 'Spray The Ultimate Cruising Book' which is available from our Book Shop. This is a compact cruiser capable of offshore cruising in comfort and can be built in Multi Chine Steel, Aluminium or Wood Epoxy.

Having owned a Spray 28 myself having wonderful experience with this boat "K*I*S*S" I can personally recommend the design .... Bruce Roberts-Goodson




Hi Bruce, I am attaching one of my favorite photos of my aluminum Spray 28 "SILVERADO" In the past two years I have experienced virtually all sailing conditions one will see in the Sea of Cortez. The boat is extremely comfortable in all conditions especially when it gets rough. Thanks again for your timely responses. Robert Millikin Tucson, AZ

Spray 28 Steel or Wood / Epoxy Good Morning Bruce, I have a steel Roberts Spray 28ft junk rigged. I have owned it some 25 years, and it was built 30 years ago. Still excellent, and wouldn't change it. (See study plans for photos of this Spray 28)

There are over 500 examples of this design currently sailing in all parts of the world. If you would like to read more about the exploits of the Spray 28 and their owners, check out Bruce Roberts-Goodson's book 'Spray The Ultimate Cruising Boat' which is available from our Book Shop. This is a compact cruiser capable of offshore cruising in comfort and can be built in Multi Chine Steel, Aluminium or Wood Epoxy.

FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

Centennial SPRAY 30

WOOD EPOXY or ALUMINUM

THIS IS A GREAT TRAILER SAILER or SMALL OFFSHORE CRUISER !!

L.O.D. ( HULL)	10.59 m	30' 6"
L.W.L.	7.79 m	26' 1"
BEAM ( Trailerable version )	2.59 m	8' 6"
BEAM ( Offshore cruising version )	3.35 m	11' 0"
DRAFT	1.45 m	4' 9"
TRAILERABLE WEIGHT	4,526 kg	10,000 lb
DISPLACEMENT - 11ft BEAM VERSION	4,950 kg	10,912 lb
BALLAST - 11ft BEAM VERSION	1,850 kg	4,078 lb


This Centennial Sprays 30 is designed for building in Aluminum or Wood/Epoxy, and can be rigged with as Bmu cutter. Custom gaff schooner, junk rig etc sail boat plans and additional accommodation layouts may be drawn to suit your requirements for a reasonable fee.

FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

Spray 33

ALUMINUM, STEEL, FIBERGLASS or WOOD / EPOXY

L.O.A HULL.	10.03 m	32' 11"
WATERLINE	8.13 m	26' 7"
BEAM	3.66 m	12' 0"
DRAFT	1.22 m	4' 0"
DISPLACEMENT	10,000 kg	22,000 lb
BALLAST	3,400 kg	7,500 lb
AUX PWR		20 - 33 hp

Spray 33 - At anchor in the Pacific.

SOUTHERLY BUSTER - Cruising in the Pacific.




Hi Just wanted to let you know that Miss Fiona arrived Anstruther, Scotland from Southampton, England in early July and thank you all for your assistance along the way. I appreciate Dylan's good advice and guidance throughout , Frank stepping in to help pave the way to completion leading to insuring a homebuilt boat for sailing in the U.K., and Peter and the NFCC for good advice, information and introductions. I also want to thank Bruce and Hal for their support throughout.

Both legs, from Jacksonville to Ft Lauderdale and from Southampton to Anstruther were enjoyable and without mishap. Miss Fiona was the star. The most challenging parts were learning how to plan passages, where tides are a hugh factor, and docking with a long keel in tight and rough conditions. Once I had the tide clock set to Dover, it all came together. We are now planning to visit the Orkneys next spring and then west coast of Scotland later. If she continues to prove herself, and the crew can match her performance, we'll try some longer passages. Thanks Henry Rupert

With over 600 completed at last count, the Spray 33 along with her larger sister the Spray 36 is one of our all time most popular designs. Many S33's have completed complete circumnavigations - proof that this is one great sailboat that you can build in your favourite building material.

FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

C entennial Spray 34

ALUMINUM, ROUND BILGE STEEL, or WOOD / EPOXY

L.O.D. ( HULL)	10.59 m	34' 9"
L.W.L.	9.45 m	30' 11"
BEAM	3.96 m	13' 0"
DRAFT	1.45 m	4' 9"
	12,247 kg	27,000 lb


Designed for those that prefer the full round bilge hull form, the Centennial Sprays have found favor with those who want to build in either round bilge steel, aluminum or wood epoxy.

FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

Spray 340 A or B

STEEL OR ALUMINUM

STEEL OR ALUMINUM CUTTING FILES & BOAT PLANS

The Centennial Sprays are designed for building in Round bilge steel or Wood/Epoxy, and can be rigged with a variety of sail boat plans including a gaff schooner, Bmu cutter, junk rig etc. Custom sail boat plans and additional accommodation layouts may be drawn to suit your requirements for a reasonable fee.

L.O.D. ( HULL) 10.59 m 34'    9"

L.W.L. 9.45 m 30' 11"

BEAM 3.96 m 13'     0"

DRAFT 1.45 m 4'     9"

12,247 kg 27,000 lb

FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

Spray 36 A,B or C
ALUMINUM, STEEL, FIBERGLASS or WOOD / EPOXY

Plans & full size patterns

L.O.A.	12.10 m	39' 7"
L.O.D.	11.20 m	36' 10"
L.W.L.	9.20 m	30' 0"
BEAM	3.66 m	12' 0"
DRAFT	1.22 m	4' 0"
DISPLACEMENT	11,053 kg	24,400 lb
BALLAST	3,805 kg	8,400 lb
AUX PWR		20 - 33 hp











The Spray 36 is available as aft cockpit,

Center cockpit or Pilot house versions


SPRAY 36 Pilot House version.
Step by step construction photographs of this boat
are included in S36 STUDY PLAN PACKAGE.

FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

Centennial Spray 36

ALUMINUM, STEEL OR WOOD EPOXY

BOAT PLANS & FULL SIZE PATTERNS

L.O.D. ( HULL)	11.05 m	36' 4"
L.W.L.	9.85 m	32' 4"
BEAM	3.96 m	13' 0"
DRAFT	1.30 m	4' 3"
DISPLACEMENT	12,700 kg	28,000 lb

Centennial Spray 34 / 36 - now several completed & cruising
world-wide. boat plans include Gaff rig . Bermudian rig . Junk rig

What really made me happy was that once the sails were trimmed to her course, she steered herself, keeping within 5 degrees of a base course. I sat there for 15 minutes and never had to touch the wheel.



FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

Spray 370 A, B or C

STEEL OR ALUMINUM

CUTTING FILES & BOAT PLANS

L.O.D. (Length on deck)	11.28 m	37' 0"
L.W.L.	9.24 m	30' 4"
BEAM	3.96 m	13' 0"
DRAFT ( There is a choice of draft )	1.22 m to 1.37 m	4'-0" to 4'-6"
DISPLACEMENT	11,521 kg	25,400 lb
BALLAST	3,991 kg	8,800 lb
AUX PWR		20 - 33 hp

SPRAY 370D built from Bruce Roberts cutting files and plans by Igor in Russia. This is the second Spray that Igor has built - the first one was a Spray 22 and Igor and his family loved the boat so decided to build the larger Spray 370 - COMPLETE "STEP BY STEP" STEEL OR ALUMINUM PLANS & CUTTING FILES ASSEMBLY PHOTOS are available with the Spray 370 STUDY PLANS.

SPRAY 370 B Built by Rod & Dee Palanca







FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

Centennial Spray 38

ROUND BILGE ALUMINUM, RB STEEL or WOOD/EPOXY

BOAT PLANS & FULL SIZE PATTERNS

L.O.D. ( HULL ) 11.73 m 38'    6"

L.W.L. 10.08 m 33'    1"

BEAM 4.29 m 14'    1"

DRAFT 1.47 m 4' 10"

DISPLACEMENT 16,174 kg 35,638 lb

Centennial Spray 38

This boat can be rigged as a gaff ketch, gaff cutter, Bermudian ketch or cutter plus a variety of other rigs including the Junk schooner etc. All available sail boat plans are shown in the study boat plans

Interior of a round bilge steel Centennial Spray 38 was built in Sweden.

Interior of a round bilge steel Centennial Spray 38 was built in Sweden.

Cruising in Emereld Steel - This CS38 has cruised extensively world wide.

Centennial Spray 38 built in New Zealand




The Centennial Spray 38 accommodation can be laid out in several ways to suit the owner and family


Here we see the interior of the Centennial Spray 38 wood epoxy hull.

Here are some comments from a broker in South Africa who sold a Centennial Spray that was built in Vietnam: Centennial Spray - I sold for original owner, Entre Deux Mers - She was built in Vietnam - a couple of photos attached (I have more if you would like for your records/files).

The new owners are just lovely and they absolutely love the boat. They are based in Middle East and intend to come over here to Langkawi at every school holiday opportunity - twice already since purchase. Thank you again for your assistance, Kind regards Michele

FOR FULL INFORMATION SEE THE STUDY PLANS

PLANS PRICE LIST

STEEL OR ALUMINUM

BOAT PLANS & FULL SIZE PATTERNS

L.O.D.	11.82 m	38' 10"
L.W.L.	9.65 m	31' 8"
BEAM	3.96 m	13' 0"
DRAFT	1.22 m to 1.52 m	4' 0" to 5' 0"
DISPLACEMENT	13,975 kg	30,810 lb





One of the several accommodation boat plans that can be used in the Spray 38 - You can choose and modify the accommodation to suit your own requirements.

This Spray 38 was built in the UK and cruised extensivly in European waters.

Hello Bruce, these are some more pictures of the steel Spray 38 after launch built in Slidell, Louisiana, U.S. by my father, Don Bradley, and myself.

You already have some posted on your site. She looks great rigged up! We have had her out a few times this summer and sails smoothly. I will also send some more interior shots and forward an email from a friend containing a couple of good shots.



Hi Bruce and associates, I am proud to announce on Aug 2 ,1998 at Roundout Yacht club, on the Roundout river a tributary of the Hudson river in New York State. A Spray 38 steel was Launch at 2:00 in the afternoon christened the Royal Ark II ,it was christened with Boons Farm wine due to the fact my wife said we have no more money left for champagne.

I would like to say thank you for all the help your organization have given me over the years by the way it was 12 all together. I will be sending you a series of pictures of it construction.
