| Accommodations
Beginning forward “INTEGRITY” has a dedicated sail and anchor locker.
Access if from the deck. Aft cabin locker bulkhead forms watertight bulkhead to living
quarters. Next aft below is a shower and head followed by a double stateroom to starboard,
single to port with hanging locker. Continuing aft is the salon table to port. Table can
be adjusted to heel of vessel! There is an ‘L’ shaped settee in centerline with
entertainment center, built in lounging chairs and wine rack to starboard. Aft to
starboard is a sit down navigation station with electronics followed by standup full sized
chart table with multiple draws for storage beneath. To port is the galley with excellent
storage and cook security underway. Continuing aft of navigation area is the passageway
leading to the aft master stateroom. The master stateroom has walk around queen on center;
settees outboard on either side, port and starboard, cedar lined linen closets. There is a
master ensuite head with separate shower and vanity.
|
Galley
- Broadwater Marine 4-burner
stove top with oven LPG
- Norcold DUA61 AC/DC
refrigerator freezer upright
- Isotherm in-counter
refrigerated ice box
- Conrad DW310 compact
dishwasher
- Sharp microwave with
carousel
- Broan trash compactor
- Double stainless steel
galley sink with single lever faucet with removable spray attachment
- Raritan 85B405 icemaker
- Candy compact front-loading
clothes washer
- Creda compact electric
clothes dryer
|
|
Deck Equipment
- 35lb. and 45 lb. CQR plow
anchors with 300’ of 3/8 BIBB anchor rode
- Maxwell Nilsson VWC3500
anchor windlass
- Transom dingy davits
- 12’6” rigid bottom
ABI inflatable dinghy with cover and (new) 5HP outboard motor
- Aft deck storage boxes/seats
with LPG locker
- Epoxy coated hull interior
|
|
Navigation Equipment & Electronics
- Icom M-7 10 SSB with antenna
tuner and long wire antenna in backstay
- Icom M-127 VHF radio with
built in loud hailer
- Icom M-502 NW radio
- RayNav 121 GPS antenna
- Raytheon 320 GPS Plotter
- Raytheon ST-60 speed log
- Raytheon ST-60 multi display
- Raytheon ST-60 rudder angle
indicator
- Raytheon ST-60digital depth
indicator
- Raytheon ST-60wind indicator
speed and direction apparent
- Raytheon ST-60 Nav Comp
- Raytheon 631 chart plotter
- Raytheon 70 CRC color radar
- Raytheon RL80 CRT 4kW radar
and plotter
|
- C-map chart cartridges
- Quest pendulum radar bracket
- Glomex V9112 TV antenna
Windex 20 wind pointer
- Simrad/Robertson AP35
Autopilot with IELP2000 linear drive and RPU200 drive pump
- ACR Cat 1 EPIRB 406
- Jabsco 255SL electric remote
control spotlight dual element
- 13” Color TV/DVD combo
- Sony 19” Trinitron
color TV
- Sony Home Theater System
500-watt in main salon
- Sony DVD player Kenwood KFC
1687 Speakers in aft and forward staterooms
- Bose 131 speakers in cockpit
- Telephone/CA TV inlet
- Masthead navigation lights
- Forespar deck lights
- Forward steaming light
|
|
Electrical Equipment
- 50-amp, 220VAC service with
panel and shore power inlet
- 30-amp, 110VAC service with
panel and shore power inlet
- 110VAC/220VAC service
panel’s circuit breaker type with parallel bus switches and master breakers
- Lina/Perkins 8kW Genset
- Heart interface LINK 2000
Inverter system DC/AC with digital panel monitoring amp hour availability
- Heart Freedom 25-12
Inverter/Charger system
- Charles Series 5000 30-amp
charger (secondary battery charger
- High output 130-amp engine
alternator
- (8) Group 3 1 AGM scaled
glass packed wet cell deep cycle batteries 12VDC
- (2) Banks of three batteries
each; and (1) Engine battery; and (1) Genset battery
- Acme 250VAC 50-amp
transformer
- Acme 110VAC 50-amp
transformer
- 12VDC service with circuit
breaker panel
- (4) Rotary type Double Pole
Double Throw 600-amp battery switches
- Analog Type AC volt and amp
meters
- Analog Type DC volt and amp
meters
- Ac and DC interior lighting
system throughout the vessel
- Steel hull wet nodding
system (Monitors hull)
- GFCI 110VDC outlets in wet
locations
- Generator/Shore power safety
lockout transfer switch
|
|
Sails & Rigging
- Isomat extruded aluminum
main mast anodized finish with micro shield (used on ICBM’s) protective finish
- (2) Aluminum spreader bars
- Stainless steel fixed
gooseneck
- Extruded aluminum boom
assembly (anodized finish)
- Furlex Headsail roller
furling system
- Furlex Staysail roller
furling system
- Hood external mainsail
roller furling system
- Forespar boom vang
- (2) Lewmar #64 12VDC
electric two-speed self-tailing sheet winches
- (2) Lewmar #49 two-speed
self-tailing sheet winches
- (New) Spectra New England
halyards
|
|
Mechanical Equipment
- Murphy engine alarm panel
- (2) Steel welded
construction fuel tanks aft of midship centerline bilge, 200 gallons total
- (5) Stainless steel welded
construction freshwater tanks centerline bilge midship, approx. 200 gallons total
- (2) Split AC systems 24,000
BTU’s each heating and cooling Artic Air with electronic thermostats
- (2) Sealand Vacuflush heads
with SANX system
- Shaft Lok Inc. shaft lock
- Racor Model 500 dual fuel
filter system with crossover
- Edson 400 pedestal steering
system
- Mechanical steering chain to
Hy-Drive hydraulic steering pump with hydraulic steering ram attached to rudder quadrant
- Emergency tiller arm
- Back up hydraulic steering
system with non-follow up steering control
- Mechanical engine controls
fuel and shift on steering pedestal
- Kahlenberg Dual Trumpet air
horns with Fiam compressor and tank
- Side Power SP 95-T Bow
Thruster 95kg. /209lb. thrust
- Raritan 20 gallon water
heater
- Raritan I 12VDC fresh water
system with accumulator tank
- Grohe and Delta lavatory
faucets
|
- Pressure regulated
freshwater inlet
- Sea Recovery SRC 170CS-OF
170 gallon per day watermaker
- Seagull freshwater filter
system with separate goose neck faucet in galley
- Max Prop feathering
propeller 3-blade bronze
- Spurs Shaft rope cutters
- 3” Stainless steel pipe
sea chest
- Shower sump pumps forward
and aft
- (2) Bilge pumps with auto
float switches
- JB Products Dry-Air
Dehumidifier
- Forecastle watertight
compartment with transverse watertight bulkhead
|
|
Safety
- Winslow 6-person offshore
life raft Valise packed with offshore SEP pack M-60SLX
- Type I PFD’s
- Type IV PFD
- Engine compartment automatic
fixed fire suppression system FE241 Kiddie FW600
- Portable fire extinguishers
- Survival suits
- MOB pole
- Life sling
|
|
Remarks

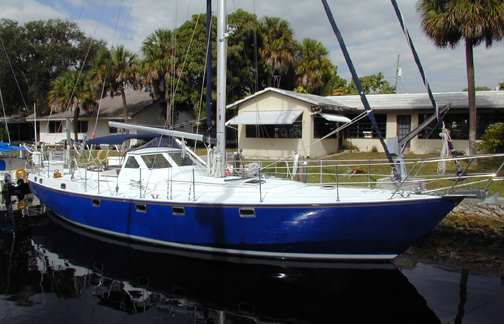

A beautiful custom designed ocean going cruising cutter recently completed. Keel laid in
1992 vessel built 1998~2002. Has just completed sea trials!
|
|
