SUPER STUDY PLANS - up to THREE STUDY PLANS ON CD.

These new study plans have lists of materials & equipment required to build and equip your boat ... these lists will help you to cost out the complete building project. Each CD contains - ALL the drawings of your choices of ONE or TWO or THREE plans with up to 25 sheets per plan! Technical information and Performance graphs are included for many designs. PLEASE indicate the study plans you would like in the SPECIAL INSTRUCTIONS BOX you will find on the order form.
FREE 300 page e-BOOK ... A boatbuilding e-book will be included FREE with your study plans on CD

CONSTRUCTION & COMPLETED BOAT PHOTOS ARE INCLUDED IN THE STUDY PLANS ON CD
INCLUDES LATEST PLAN & KIT PRICES ... ORDER study plans now only $99 or €79 or Ł55

ROBERTS 58 - Radius Chine Steel or Aluminum or Fiberglass
Several Roberts 58's have already been completed and have made extensive voyages including many crossings of Atlantic and Pacific oceans. The standard version of this design has a draft of 7'0" but this could be reduced by using a modified shoal keel. Custom keels and sail plans are available, as are custom interior layouts. The standard sail plan is a ketch rig and the layout as drawn has a spacious aft cabin.

You can build the Roberts 58 in either Round Bilge Fibreglass or Radius Chine Steel or Aluminium. The complete plans and Full Size Patterns include many sheets of large-scale drawings, plus full-size patterns for the hull, deck and cabin top beams, etc.

L.O.A.	17.83 m	58' 6"
L.W.L.	14.71 m	48' 4"
BEAM	5.02 m	16' 6"
DRAFT	1.68 to 2.1 m	5' 6" to 7' 0"
DISPLACEMENT	27,216 kg	60,000 lb
BALLAST	9,072 kg	20,000 lb

	ROBERTS 58 The plans & Full Size frame patterns include a choice of sail plans including cutter headed ketch (shown) and cutter. This boat can will also accept a variety of other rigs.
	ROBERTS 58 The accomodation plan can be varied to suit your requirements - other version are shown in the Study plans on CD package.

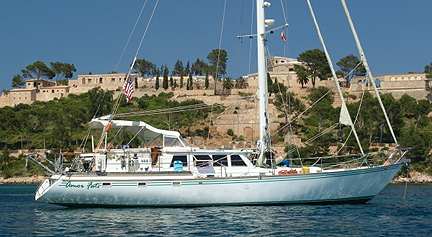

	ROBERTS 58 ROBERTS 58 Amor Fati is a proven cruiser that has both been there and come back again. Designed by Bruce Roberts, she is outfitted for the serious cruiser. Once again, she is on the high seas on her way from Rome to San Diego. She left in late October 2005, will depart the Canaries in late November to cross the Atlantic and arrive in Barbados before Christmas. Her sail plan then calls for stops in Martinique, St. Lucia, St. Vincent and Grenada before the New Year. In January, she will see Curacao, Bonair, Aruba, Cartagena, San Blas, Puerto Bello, and Colon Panama. She is expected to transit the Panama Canal in the third week of January and then head for the West Coast and San Diego.
	ROBERTS 58 Another fine example of the Roberts 58 design Hello Bruce, We are currently the owners of a Roberts 58 steel ketch, very happy with it, and are considering building a large catamaran, such as yours. Cheers Richard Taylor
	ROBERTS 58 This Roberts 58 has a slightly raised pilot house.
	ROBERTS 58
	ROBERTS 58
	ROBERTS 58
	ROBERTS 58
	ROBERTS 58 Radius Chine Steel Built in Russia by André who writes "We bought the project in 1993. We built yacht with little changes and called it Faith (VERA). Vera sails on Lake Baykal in Siberia. Now we are building second boat also a Roberts 58 this Yacht - IS GOOD. Regards André UPDATE: 1ST NOVEMBER 2005 Dear Mr. Roberts, First of all let me express my deep respect towards you & your work. I am ordering the Plans CD for the Cat 60 A. If You remember there is a photo of my R58 built according to Your plans still on Your site( See at left ). Sincerely Yours Andrei SHEIKIN ANDREI ШЕЙКИН АНДРЕЙ Russia
	ROBERTS 58 Roberts 58 Built by Put Veini in Latvia - No the gentleman is not a midget - this is one big sailboat !
	ROBERTS 58 Radius chine steel or aluminum The radius chine technique shown here makes it easy for any person capable of welding to achieve a beautiful and fair metal hull and this is an ideal method to build the new Roberts 410 The STUDY PLANS on CD show step by step photos on building your radius chine sailboat hull.

Hello,

My lovely ex wife told me to check out your web site and I found pictures of the Roberts 58’ my father built when I was 12. I am now 42 and purchased the boat from my father a few months ago and am now taking her from Seattle to St Croix USVI where I live. The first leg of the trip went from Seattle to San Diego and the next leg will leave around the 30^th of this month and go onto Panama then to St Croix. I do believe that the Roberts boat my father and I built may be the finest Roberts boat ever completed and I am proud to have been apart of the process of building her and now getting her to the warm Caribbean waters. Feel free to use any pictures of my boat newly renamed the S/V Parrothead. You can see many more pictures of the boat on my website www.viescape.com and go to the sailing page and click on the Parrothead logo.

Cheers, Captain David
