NEW YORK
65 - Plans - Fiberglass, steel, aluminum
also KIT available. NOTE: Wood / Epoxy plans & patterns also available for this design. This is a sailboat that can be modified to suit a variety of sailing lifestyles. Both Slimline & regular beam versions are available as plans and frame patterns to be built in Steel or Fiberglass. The New York 65 is ideal for luxury charter or fast family sailing and offers a variety of accommodation options and many accommodation layouts are possible. Each New York 65 version will vary depending on the building material, draft limitations and any client options and requirements. Construction methods include: Radius chine aluminum, Radius chine steel and any one of the fiberglass methods. There are several different accommodation arrangements available.
|
| L.O.D | 65'-0" | 19.81 m |
| L.W.L | 60'-8" | 18.53 m |
| BEAM (Slimline) | 12'-6" | 3.81 m |
| BEAM (Widebody) | 16'-0" | 4..88 m |
| DRAFT | Various |
![]()
|
NEW YORK 65
|
![]()
|
NEW YORK 65 The accomodation plan shown for can be varied to suit the owners personal choice. Note the optional longer shoal keel is shown in this profile view. |
![]() |
NEW YORK 65 The accomodation plan shown above features twin double cabins aft - this photo is of one of those cabins - Ideal for charter work. For more interior photos see .. Study plans on CD. |
|
|
NEW YORK Here we see the large berth as featured in the master cabin ....Photos show a recently launched NY 55 built by Ian and June Thorpe. As alternative to the two double staterooms aft ... This arrangement easily fits into the NY 65. |
|
|
NEW YORK Another view of the spacious master cabin in the NY 55 B ... Photos show a recently launched NY 55 built by Ian and June Thorpe As alternative to the two double staterooms aft ... This arrangement easily fits into the NY 65.
|
![]() |
NEW YORK 65 This boat is available as a steel of aluminum KIT or Cutting files and plans .. see VOYAGER 655
|
![]()
|
NEW CUSTOM
FEATURE: SAFETY SKEG IS
AVAILABLE ON THIS BOAT. |
![]() |
NEW YORK 65 This boat is available as a steel of aluminum KIT or Cutting files and plans .. see VOYAGER 655 STUDY PLAN PACKAGES ON CD GIVE ACCESS TO MANY step by step BOAT CONSTRUCTION DRAWINGS AND PHOTOS + PHOTOS OF COMPLETED BOATS ETC. SEE DETAILS ORDER STUDY PLANS |
![]() |
NEW YORK 65 Note the fairness of this radius chine hull. |
![]() |
NEW YORK 65 Note the great dinette arrangement in this version of the New York 65
|
![]() |

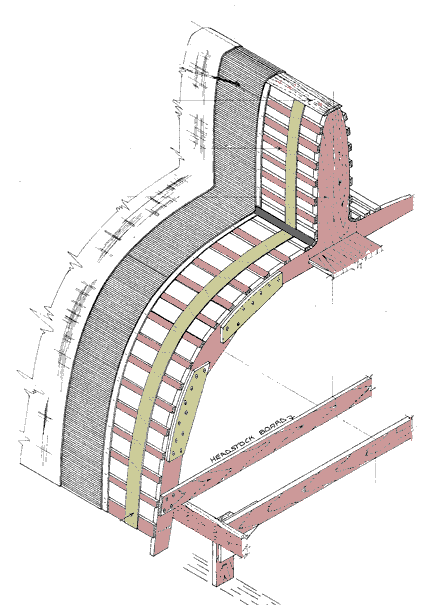

Here we see the construction of the hull male mold which consists of frames cut using the full size patterns supplied with the plans plus the addition of timber battens, C-flex fiberglass and shows the first layers of fiberglass laminate.
STUDY PLAN PACKAGES ON CD GIVE ACCESS TO MANY step by step BOAT CONSTRUCTION DRAWINGS AND PHOTOS + PHOTOS OF COMPLETED BOATS ETC. SEE DETAILS ORDER STUDY PLANS |
![]() |
On the left we see the C-Flex Fiberglass being installed on a hull mold
as described above. Similar methods are used to install core material such
as Corecell or Airex foam.
On the left we see hull rolled over to the upright position and then the mold is lifted out of the hull shell. The mold is sometimes removed in one piece as shown here or in parts depending on the shape of the hull and the method used to laminate the hull.
|
|
|
|
Dear Bruce, I have
constructed a beautiful NY 65 / Voyager 655 "Melon Eye. I would like to share info
with you. Paul & Melinda West of Ketchikan Alaska.
|
|
73 FT VERSION - NEW YORK 73 - round bilge aluminum also available. |
