 Voyager TY485

STEEL KIT or PLANS & CUTTING FILES  or WOOD EPOXY PLANS & FSP
'World girdling Trawler Yacht' With it's displacement hull form this design is an ideal long distance cruiser. This is your opportunity to have your own passage making 'Voyager' designed and built at an affordable price. Now you can put those pieces together into one boat that you REALLY like ! Consider customizing one of our new designs. Bring us YOUR ideas. We can offer Steel or Aluminum Plans and Cutting files, CUT-TO-SIZE KITS or Part-Built or Complete Boats.


These trawlers are designed in accordance with Lloyds  for category 1 (unrestricted operating / sailing area), which is much better than the EU and other Classification Societies and the  CE-A require. Complete stability calculations to USCG offshore requirements are included in the design package. All calculations are also cross referenced against ABS requirements to ensure that the design meets world-wide standards and specifications.

In the case of KITS, all plate parts belonging to the hull, deck and superstructure that are accurately cut to size are included. The parts are marked with the appropriate part number and engraved matching marking lines to assist in the assembly and location of the part in its position. Cutting method is Plasma / Oxygen, ensuring highest accuracy and smooth edges.

Plate parts are cut from Lloyds approved A Grade Shipbuilding quality STEEL that has been coated with factory applied Sigma weld MC welding primer.  We use and recommend steel plate that has the official designation ISO standard 10474 or EN 10204 with 3.1.B certificate.
  TY485
STEEL OR W/E		 TY485
STEEL OR W/E
L.O.A. 20.90 m 52'   02" Incl. swim
L.O.D 14.93 m 49'   02" Hull only
L.W.L. 14.43 m 47'   04"
BEAM 5.25 m 17'   03"

Trawler 485
STEEL Kit or Cutting files
OR
WOOD EPOXY PLANS & FRAME PATTERNS.

Passagemaker TY 485 built in Belgrade




Trawler 485
STEEL Kit or Cutting files
OR
WOOD EPOXY PLANS & FRAME PATTERNS.

Artists impression of the Passagemaker TY 485 As you can see from the photographs the appearance of the boat lives up to this representation.

Trawler 485
STEEL Kit or Cutting files
OR
WOOD EPOXY PLANS & FRAME PATTERNS.

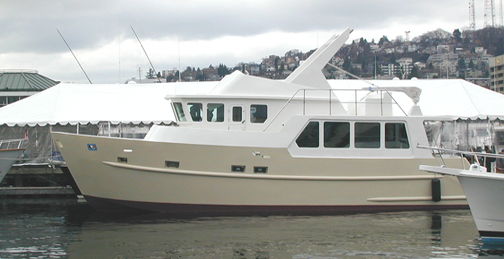

Bruce Our TY-485 is in the water, & was at the Seattle big boat show.

Performance & handling of this boat has exceeded all of our expectations !!
With the twin Lugger 165hp engines, we are doing hull speed at 2000 rpm

Trawler 485
STEEL Kit or Cutting files
OR
WOOD EPOXY PLANS & FRAME PATTERNS.

Here we see the standard accommodation plan as designed but of course you can vary the layout to suit you own personal requirements.





Trawler 485
STEEL Kit or Cutting files
OR
WOOD EPOXY PLANS & FRAME PATTERNS.

Most of our trawlers will accept a sail plan and there are several options you could use including the junk main combined with a flying jib as shown here on this TY 485

Trawler 485
STEEL Kit or Cutting files
OR
WOOD EPOXY PLANS & FRAME PATTERNS.

The swim platform forms part of the  hull and makes boarding from either a dinghy or when moored stern-to, European fashion. Note optional engine-room access from swim area.

Trawler 485
STEEL Kit or Cutting files
OR
WOOD EPOXY PLANS & FRAME PATTERNS.

Passagemaker TY 485 built in Belgrade




Trawler 485
STEEL Kit or Cutting files
OR
WOOD EPOXY PLANS & FRAME PATTERNS.

STUDY PLANS ON CD ... these study plans have a complete set of construction photos included on the CD


 ALL STUDY PLAN PACKAGES ON CD GIVE ACCESS TO HUNDREDS OF BOAT AND KIT ASSEMBLY PHOTOS ... See details

KIT DESIGNS:

NEW CUSTOM PLANS IN FIBERGLASS OR WOOD EPOXY.

Many of you admire our range of kit designs but you would prefer to build in other materials … Consequently we have had many requests to provide alternative custom plans for building in fiberglass or wood epoxy.

TRAWLER YACHT KIT DESIGNS - FIBERGLASS

To check out the Fiberglass construction techniques that will be reflected in the plans and full size frame patterns … REFER to the BUILD YOUR OWN POWERBOAT … chapters 12 and 13

TRAWLER YACHT KIT DESIGNS  – Wood Epoxy

To check out the Wood Epoxy techniques that will be reflected in the plans and full size frame patterns … REFER to the BUILD YOUR OWN POWERBOAT … chapter 14
