NEW ! SUPER STUDY PLANS - ANY THREE STUDY PLANS ON CD. The study plans have lists of materials & equipment etc ... these will be a great help in costing out the completed vessel. Each CD contains - ALL the construction drawings of your choices of ANY THREE STUDY PLANS with up to 25 sheets per plan! Lists of materials - Technical information - Performance graphs - Numerous construction photographs ETC. You can view & print the drawings in full or in sections. PLEASE INDICATE WHICH STUDY PLANS YOU WANT TO ORDER in the SPECIAL INSTRUCTIONS BOX on the ON-LINE-ORDER-FORM & or EMAIL your wishes us$99 / € 70 / £64. Includes FREE e-BOOK BUILD YOUR OWN POWER BOAT on CD. HUNDREDS OF STEP BY STEP BUILDING PHOTOS ARE INCLUDED IN THE STUDY PLANS ON CD PACKAGE. INCLUDES PRICES ... ORDER |
EURO 1400 - Aft
Cabin & Cockpit versions available. Stylish yacht designed with the family or entertaining in mind, this mid size motor yacht will find many admirers. The kit comes complete with steps leading down to the swim platform. Capable of 20 knots with twin 120 hp this design will still cruise at 10 to 12 knots with a single 180 hp engine. A very popular boat and several have been already assembled from our kit.
This boat is designed in accordance with Lloyds for
category 1 (unrestricted operating / sailing area), which is much better
than the EU and other Classification Societies and the CE-A require.
Complete stability calculations are included in the design package. All
calculations are also cross referenced against ABS requirements to ensure
that the design meets world-wide standards and specifications.
In the case of KITS, all plate parts belonging to the hull, deck and superstructure that are accurately cut to size are included. The parts are marked with the appropriate part number and engraved matching marking lines to assist in the assembly and location of the part in its position. Cutting method is Plasma / Oxygen, ensuring highest accuracy and smooth edges.
Plate parts are cut from Lloyds approved A Grade
Shipbuilding quality STEEL that has been coated with factory applied Sigma
weld MC welding primer. We use and recommend steel plate that has the
official designation ISO standard 10474 or EN 10204 with 3.1.B
certificate.
Pre cut boat kits contain all the metal parts required to build a complete hull, decks and superstructure. These parts are computer generated and NC Plasma cut before they are packed and delivered ready for you to start assembling and welding into the finished boat. We design and nest the package using our specialized computer programs, then cut on a computerized plasma-oxygen cutter. For example, an 11m ( 36' ) yacht would comprise of around 300 parts!
These kits are shipped
world-wide each in individual containers. The following power boats are available as kits
only. They come with full construction details. We can develop, as kits, most Bruce
Roberts hulls, whether displacement, semi-displacement or planing. These are a great way
to get on the water in a boat that you have fully customised for yourselves.. For a full
description on building kits please see our
POWERBOAT KIT ASSEMBLY pages. As with all our kits, framing is simple and the plates are designed to literally wrap themselves around the hull. Power requirements are twin 200 hp for 10 knots to twin 220 hp for 14 knots. Planing hull versions are available. |
| LOA | 45' 09" | 13.95m |
| LWL | 38' 05" | 11.72m |
| BEAM | 15' 06" | 4.72m |
| DRAFT | 4' 00" | 1.20m |
|
|

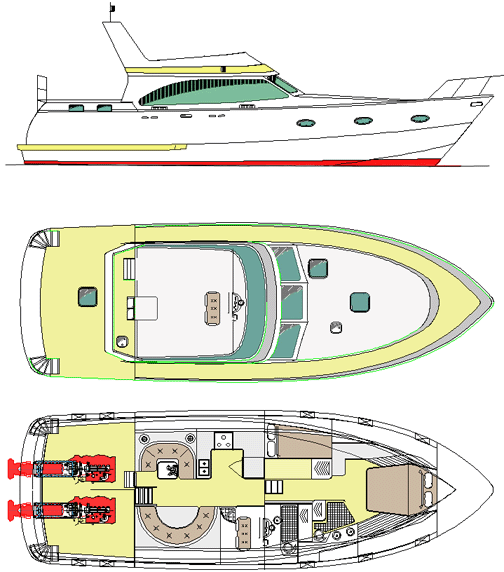

EURO 1400 - Aft

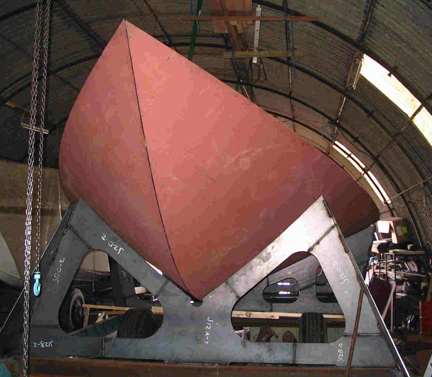

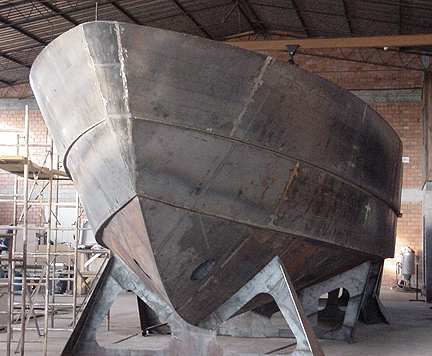

Cabin version. NOTE: All the assembly photos are included in the STUDY PLAN PACKAGE ON CD STUDY PLAN PACKAGES ON CD GIVE ACCESS TO HUNDREDS OF step by step BOAT & KIT ASSEMBLY PHOTOS ... See details
|
|
|
EURO 1400 - Aft
Cabin version. Plans for Fiberglass construction. Speeds to 35 knots + NOTE: All the assembly photos are included in the STUDY PLAN PACKAGE ON CD STUDY PLAN PACKAGES ON CD GIVE ACCESS TO HUNDREDS OF step by step BOAT & KIT ASSEMBLY PHOTOS ... See details
This version may be fitted with JET DRIVES or conventional twin engines under pilot house.
|
|
|

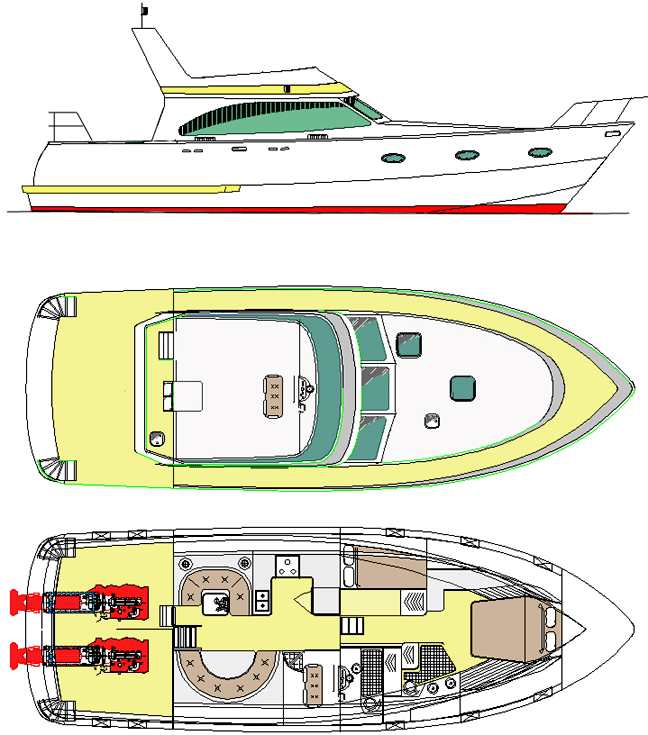

EURO 1400 - Aft
Cockpit version.
STEEL or
ALUMINUM KIT or Cutting Files & Plans |
|
|
EURO 1400 - Aft
Cockpit version. Plans for Fiberglass construction. Speeds to 35 knots + NOTE: All the assembly photos are included in the STUDY PLAN PACKAGE ON CD STUDY PLAN PACKAGES ON CD GIVE ACCESS TO HUNDREDS OF step by step BOAT & KIT ASSEMBLY PHOTOS ... See details
This version may be fitted with JET DRIVES or conventional twin engines under pilot house.
|
|
|

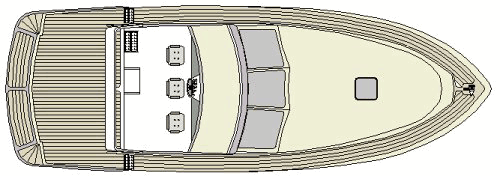

EURO 1400 FAMILY POWERBOAT AFT COCKPIT configuration. This new styling option now available for all Euro 1400 models. |
|
KIT DESIGNS: NEW PLANS IN FIBERGLASS OR WOOD. Many of you admire our range of kit designs but you would prefer to build in other materials … Consequently we have had many requests to provide alternative custom plans for building in fiberglass or wood epoxy. EURO POWERBOAT KIT DESIGNS - FIBERGLASS To check out the Fiberglass construction techniques that will be reflected in the plans and full size frame patterns … REFER to the BUILD YOUR OWN POWERBOAT … chapters 12 and 13 EURO POWERBOAT KIT DESIGNS – Wood Epoxy To check out the Wood Epoxy techniques that will be reflected in the plans and full size frame patterns … REFER to the BUILD YOUR OWN POWERBOAT … chapter 14 |
