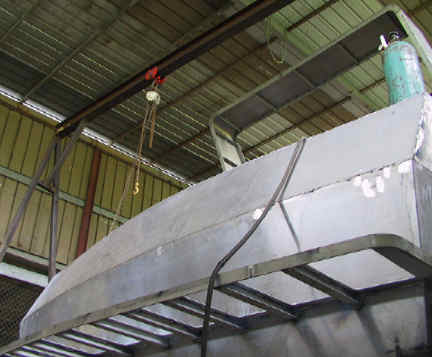

The building jig that comes as part of the STEEL OR ALUMINUM PLANS & CUTTING FILES supports the hull throughout the construction process.

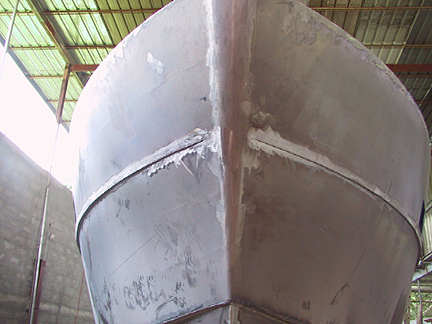

The rounded bow cone is already formed as part of the standard STEEL OR ALUMINUM PLANS & CUTTING FILES package.

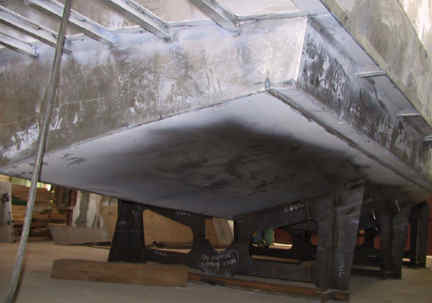

View of the stern showing the substantial framing to support the swim platform.

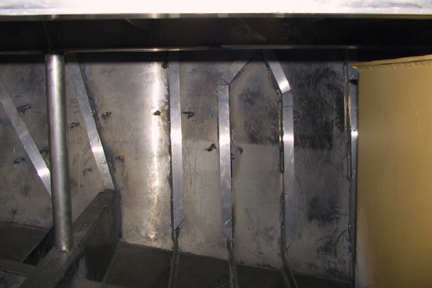

All bulkheads have substantial supports and these will act as attachment points for lining material in accommodation areas.

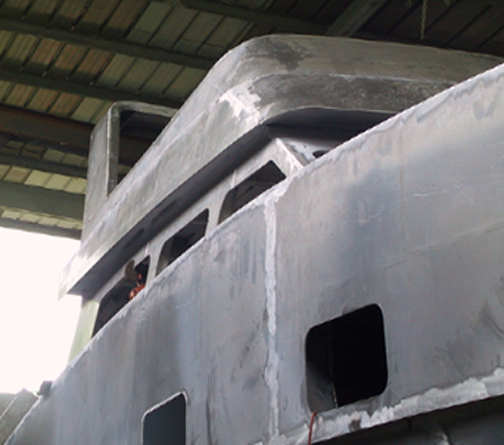

This view shows off the recessed window frames and other attractive structural features of the Atlantic 12 M sport fisherman STEEL OR ALUMINUM PLANS & CUTTING FILES as supplied to the builder.
